Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 6 x 120 mm

Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 6 x 120 mm

Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 6 x 120 mm
Item no: 1021599 123

Online price:

Available in 6-8 working days.

Application
For clamping carbide, HSS and steel shanks with a tolerance of h6.

Execution
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Notes
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: HSK 40
Clamping diameter (d): 6,0 mm
Projecting length (A): 120,0 mm
Outer diameter (d3): 27,0 mm
Tapered diameter (d2): 21,0 mm
Clamp in depth (l2): 36,0 mm
Max. adjustment travel (max. V): 10 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 40,000 rpm
Construction length: Long
Max. concentricity: 0,003 mm
Thread dimension: M5

Manufacturer part no.: 72.568.500.150

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE UltraHL B 371 35° M4x0.7 ISO2 S 2.5xD CNC UNI
    36,46 €
  • ATORN HPC POWER SC end mill, HARD, 20.0x44x54x104 mm r=0.5 HB, type H, long
    293,56 €
  • Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° P20 12 Q
    12,37 €
  • Shrink-fit chuck DIN 69893 shape A HSK63 diameter 14 x 90 mm
    185,84 €
  • Shrink-fit chuck slim DIN 69893 shape A HSK63 dia. 10 x 90 mm stainless steel
    242,88 €
  • Shrink-fit chuck slim DIN 69893 shape A HSK63 dia. 12 x 90 mm stainless steel
    242,88 €
  • Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 8 x 120 mm
    290,72 €
  • Shrink-fit chuck slim DIN 69893 shape E HSK40 diameter 8 x 84 mm stainless steel
  •
    Shrink-fit chuck slim DIN 69893 shape E HSK40 diameter 10 x 84 mm stainless steel
    239,20 €
  • ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 12 mm A=90 mm
    203,28 €

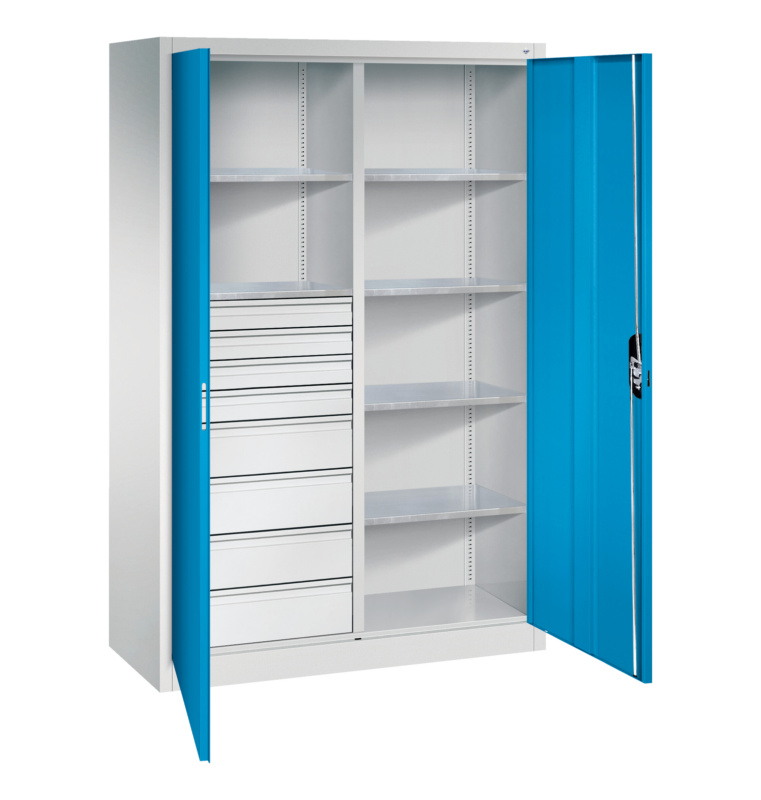

  • Hinged door tool cab. 1950x1200x500mm, 6 shelves, 4 sm.+4 lrg. drawers RAL5012
  •
