ATORN SC TVC end mill ULTRA 16x82x140 mm T4 HB shank

ATORN SC TVC end mill ULTRA 16x82x140 mm T4 HB shank

ATORN SC TVC end mill ULTRA 16x82x140 mm T4 HB shank
Item no: 1016667 316

Online price:

Available in 6-8 working days.

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3-5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HB
  • ULTRA coated
  • Centre cutting and edge protection chamfer
  • Special chip breakers for short chips
  • Uneven twist angle


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Extra long
Cutting edge diameter: 16 mm
Cutting edge length: 82 mm
Length: 140 mm
Edge protection chamfer length: 0,32 mm
Shank diameter: 16 mm
fz steel 1000: 0.18
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264499

EAN no.: 4066107005559

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE TiN B 371 40° M2 0.4 mm ISO2 S 2.5xD CNC UNI
  •
    ATORN screw tap HSSE-PM B 376 0° M12 1.75 mm ISO2 D 3xD CNC S
  •
    ATORN screw tap HSSE C 374 0° MF14 1.25 mm ISO2 D/S 2xD CNC P
  •
    ATORN SC TVC end mill ULTRA 20x82x145 mm T4 HB shank
  •
    ATORN SC TVC end mill ULTRA 10x52x100 mm T4 HB shank
  •

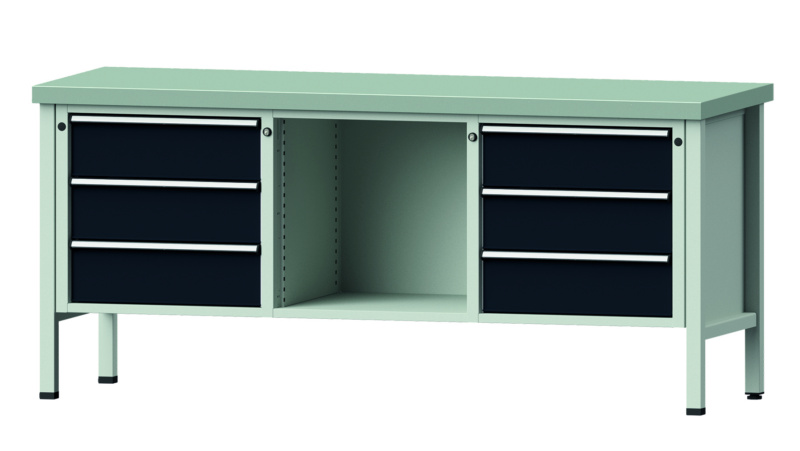

    Cabinet workbench model 108 V plate w/ sh. st. coat. height 850 mm RAL 7035/5010
    1.745,15 €

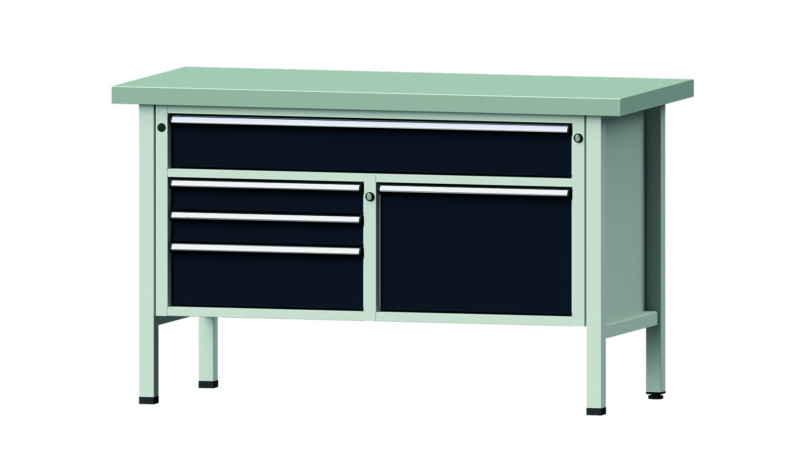

  • Cabinet workbench model 108 V plate w/ sh. st. coat. height 900 mm RAL 7035/7016
  •
