ATORN screw tap HSSE UltraHL B 371 35° M4x0.7 ISO2 S 2.5xD CNC UNI

ATORN screw tap HSSE UltraHL B 371 35° M4x0.7 ISO2 S 2.5xD CNC UNI

ATORN screw tap HSSE UltraHL B 371 35° M4x0.7 ISO2 S 2.5xD CNC UNI
Item no: 1003140 946

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 63 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 0,7 mm
Twist angle: 45° (right)
DIN: 371
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,3 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482433

EAN no.: 4050293578898

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE TiN C 371 40° M6 1 mm ISO2 S 2.5xD CNC P
    27,61 €
  • ATORN screw tap HSSE vaporised shape C M14 x 2 mm long for blind hole
  •
    Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° P10 20 Q
    18,68 €
  • Knurling wheel DIN 403 PM type BR 30° dia. x width x hole 20x8x6 mm pitch 1.5 mm
    49,39 €
  • Knurling wheel DIN 403 PM type BR 30° dia. x width x hole 25x6x8 mm pitch 1.0 mm
    61,29 €
  • ATORN collet chuck SK50 (ISO 7388-1) ER16-Mini A=130 mm
    115,70 €

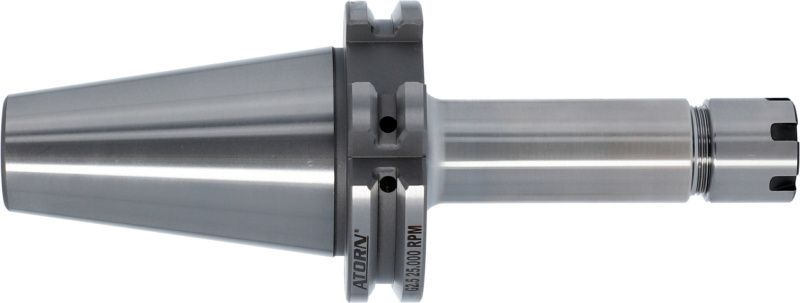

  • Collet chuck DIN 69871 ER25/430 E SK40 XL fine thread G2.5 25,000 rpm with ICS
