ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 12 mm A=90 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 12 mm A=90 mm

ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 12 mm A=90 mm
Item no: 1021803 112

Online price:

Available in 5-7 working days.

Application
For clamping milling tools and drill bits with h6 shaft tolerance. Suitable for heavy-duty machining and all high-power applications. Suitable for inductive, contact and hot air shrinking devices.

Execution
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • 4 additional drill holes for fine balancing
  • With Balluff chip hole
  • Glass bead blasted

Advantage
  • Slim design, extremely low interference contour
  • High transmittable torques
  • High positioning and repeat accuracy
  • Ideal for high rotation speeds

Delivery
1x HSK63 shrink-fit chuck 3° (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Clamping diameter (d): 12 mm
Projecting length (A): 90 mm
Tapered diameter (d2): 18 mm
Diameter (d3): 24 mm
Clamp in depth (l2): 47 mm
Suitable for thread ( G): M10 x 1
Width across flats: 5 mm
Max. adjustment travel (V): 10 mm
Concentricity tolerance: 0,003 mm
Coolant supply: Internal axial
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044803

EAN no.: 4050293408928

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC mini radius cutter TiAlSiN 0.2x0.16x50 mm clearance 0.17x1 mm
  •
    ATORN shrink-fit chuck HSK63 x 6 A120 (KKB) long version, heavy-duty machining
  •
    Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 10 x 120 mm
  •
    Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 12 x 120 mm
  •
    ATORN shrink-fit chuck HSK63 (ISO 12164) KKB diameter 32 mm A=120 mm
  •
    ATORN ultra-slim BT40 hydraulic expansion chuck (ISO 7388-2) dia. 8 mm A=160 mm
  •
    ATORN ultra-slim BT40 hydraulic expansion chuck (ISO 7388-2) dia. 12 mm A=160 mm
  •
    ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 8 mm A=120 mm
  •
    ATORN shrink-fit chuck HSK63 (ISO 12164) dia. 32 mm A=120 mm
  •
    Hinged door tool cab. 1950x1200x500mm, 6 shelves, 4 sm.+4 lrg. drawers RAL5012
  •

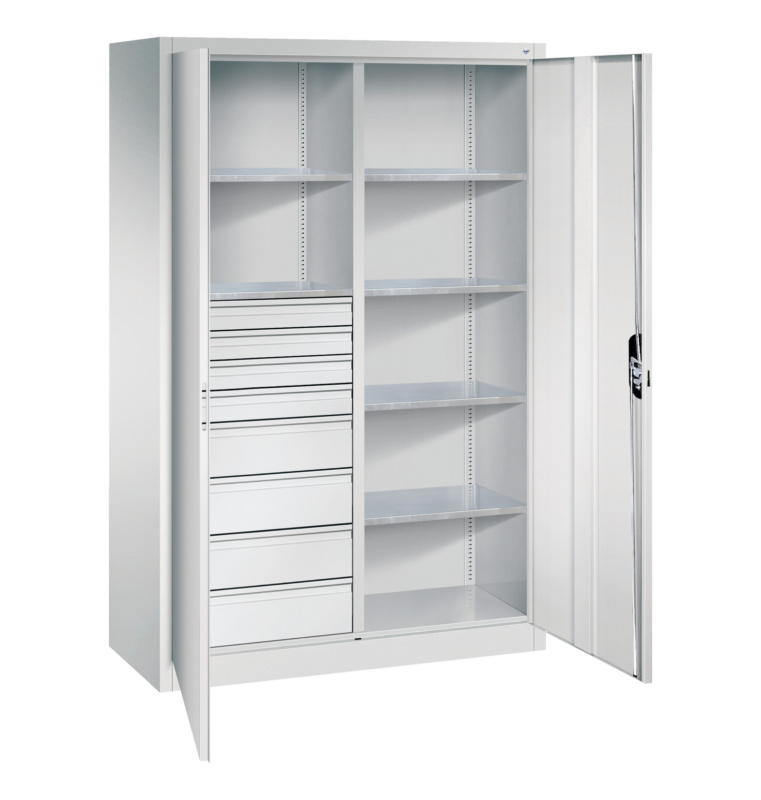

    Hinged door tool cab. 1950x1200x500mm, 6 shelves, 4 sm.+4 lrg. drawers RAL7035
  •
