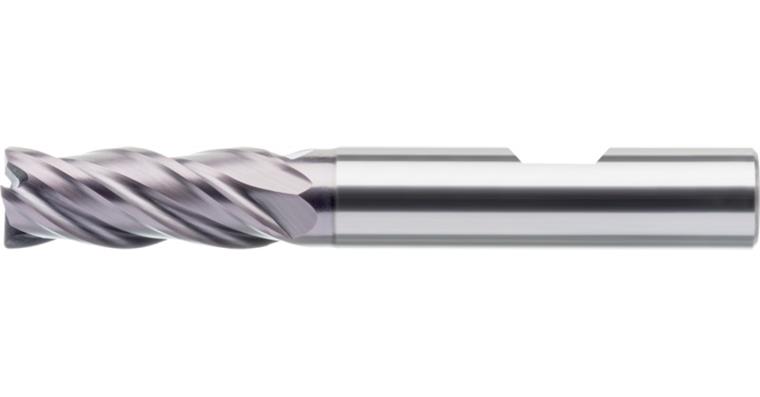

ATORN HPC POWER SC end mill, HARD, 20.0x44x54x104 mm r=0.5 HB, type H, long

ATORN HPC POWER SC end mill, HARD, 20.0x44x54x104 mm r=0.5 HB, type H, long

ATORN HPC POWER SC end mill, HARD, 20.0x44x54x104 mm r=0.5 HB, type H, long
Item no: 1016672 408

Online price:

Available in 5-7 working days.

Application
HPC end mill for high-strength materials up to 1600 N/mm² and hardened steel up to 55 HRC – optimal application in trochoidal milling and in edge, corner and groove machining.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA H high-performance coating
  • Centre cutting
  • Uneven twist angle: 35°/38°
  • Unequal cutting edge pitch
  • Optimised cutting edge design
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High process reliability owing to robust cutting edges
  • Very good surface quality
  • Reduces vibrations
  • Ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA H
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 44 mm
Clearance length: 54 mm
Length: 104 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
fz hard 52 HRC: 0,08 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10617349

EAN no.: 4050293411263

Product Datasheet Datasheet cutting values
