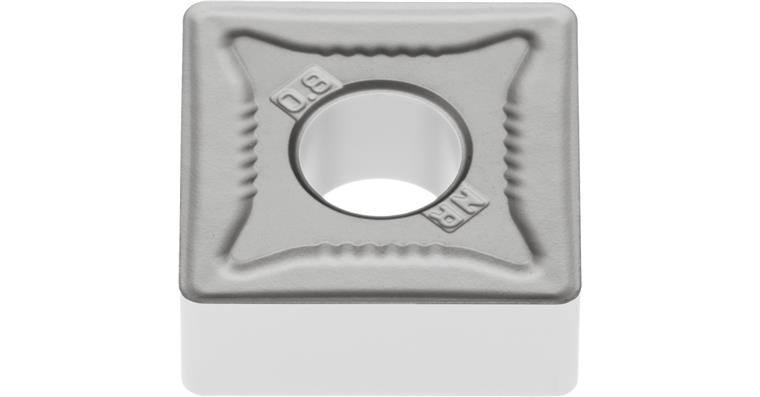

ATORN indexable insert SNMG 120408 roughing RM HC7520

ATORN indexable insert SNMG 120408 roughing RM HC7520

ATORN indexable insert SNMG 120408 roughing RM HC7520
Item no: 1018582 607

Online price:

Available in 4-6 working days.
Replacement article

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: SNMG 120408
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.8-3 mm
f min./max.: 0.15-0.25 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,15 mm/r
max. f: 0,25 mm/r
max. ap: 3 mm
min. ap: 0,8 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in stainless steel: 110-260 m/min
Min./max. Vc in special alloys: 30-60 m/min

ATORN-No.: 10875216

EAN no.: 4066107006198

Product Datasheet
