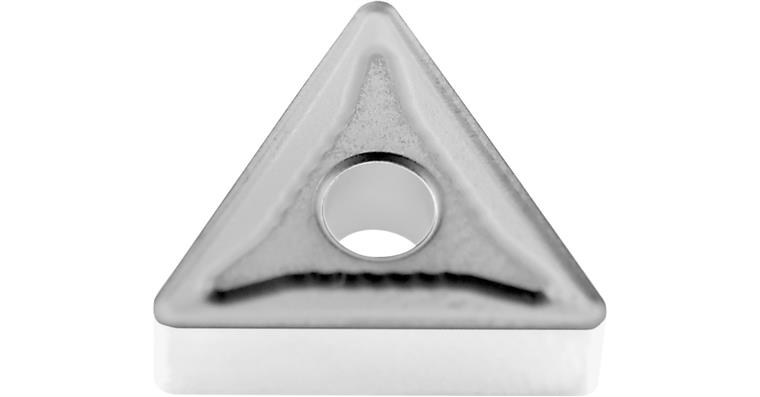

ATORN indexable insert TNMG 160408 roughing RM HC7520

Item no: 1018598 419

Online price:

Catalogue price: You save:

Available in 4-6 working days.

Replacement article

Min. order quantity: 10

Execution
ISO M coating CVD

Advantage

perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions

Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: TNMG 160408
Material to be processed: Stainless steel | Special alloy
min./max. ap: 1.2-4.0 mm
f min./max.: 0.22-0.40 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,22 mm/r
max. f: 0,40 mm/r
max. ap: 4,0 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in stainless steel: 110-260 m/min
Min./max. Vc in special alloys: 30-60 m/min

ATORN-No.: 10875237

EAN no.: 4066107006402

Product Datasheet
