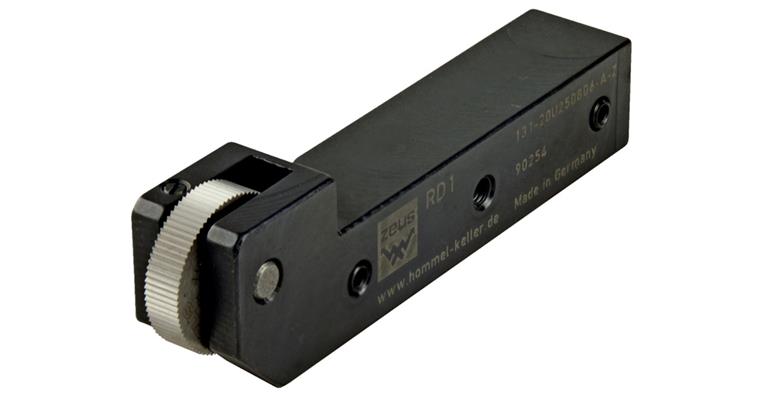

Knurling tool for CNC lathes sample RAA RBL RBR 8-200 mm

Item no: 1018965 103

Online price:
Catalogue price:

You save:

Still in stock: 7

Add to watch list

Quantity

Min. order quantity: 1

Add to basket

Description

Application
For conventional and CNC lathes, turning/milling centres, multi-spindle lathes and short/universal machines.
Knurling patterns: RAA, RBL, RBR, RGE, RGV, RKE, RKV.
Precision pressure knurls:
1x shape AA (RAA)
1x shape BL 30° (RBL)
1x shape BR 30° (RBR)
1x shape GV (RGE)
1x shape GE (RGV)
1x shape KV (RKE)
1x shape KE (RKV)

Execution

Special surface hardening for increased wear resistance
Tungsten carbide runner pins secured via screw for quick knurling wheel replacement

Delivery
Delivered without precision pressure knurl (see art. no. 1018970-1018974).

Technical data

For min./max. workpiece diameter: 8-200 mm
Shaft height: 20 mm
Shank width: 20 mm
Shaft length: 109,5 mm
Length 2: 29,5 mm
Height: 32,5 mm
Suitable for knurling size: 20 x 8 x 6 mm
Knurling shape created on workpiece (DIN 82): RBL 30° | RGE | RGV | RBR 30° | RKV | RAA
