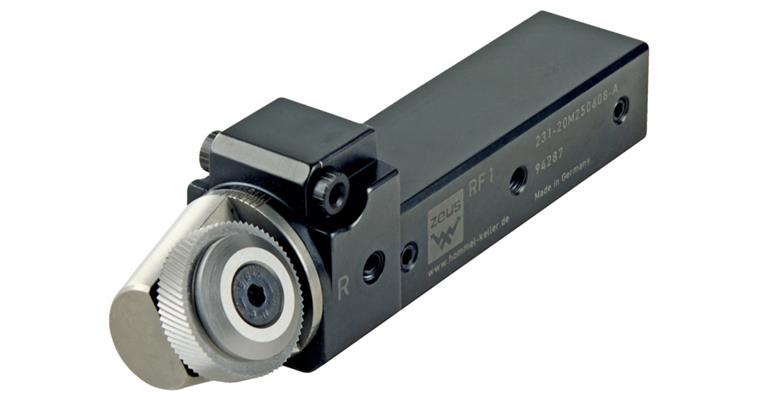

Knurling tool, sample RAA, RBL, RBR 30° 10-300 mm without knurling wheels
Item no: 1018977 101
Online price:
Catalogue price:
You save:
Will be ordered for you
Min. order quantity: 1
Description
ApplicationFor conventional and CNC lathes, turning/milling centres, multi-spindle machines and short/universal lathes.
Knurling patterns: RAA, RBL 30°, RBR 30°.
Knurl cutter:
1x shape BR 30° (for right-hand version)
1x shape BL 30° (for left-hand version)
1x shape AA RBL 30°/RBR 30°
Execution- Modular design: Knurling tool can be used universally as right and left-hand version
- Quick changeover process: simply dismantle and rotate the knurling head
- With positioning latching for optimum initial positioning
- Fine adjustment of the knurling head via threaded spindle with scaling
- Radial and axial rotation lock for optimum tool guidance on the workpiece and improved surface quality
- Special surface hardening for increased wear resistance
DeliveryDelivered without knurl cutter (see art. no. 1018983-1018985).
Technical data
Brand: ZEUS
For min./max. workpiece diameter: 10-300 mm
Shaft height: 25 mm
Shank width: 20 mm
Shaft length: 129 mm
Width: 33 mm
Length 2: 49 mm
Height: 36 mm
Suitable for knurling size: 25 x 8 x 6 mm
Knurling shape created on workpiece (DIN 82): RAA | RBR 30° | RBL 30°
Tool design: Right | Left
More details
Manufacturer part no.:
RW231-20M250608-B
EAN no.: 4030741639036
