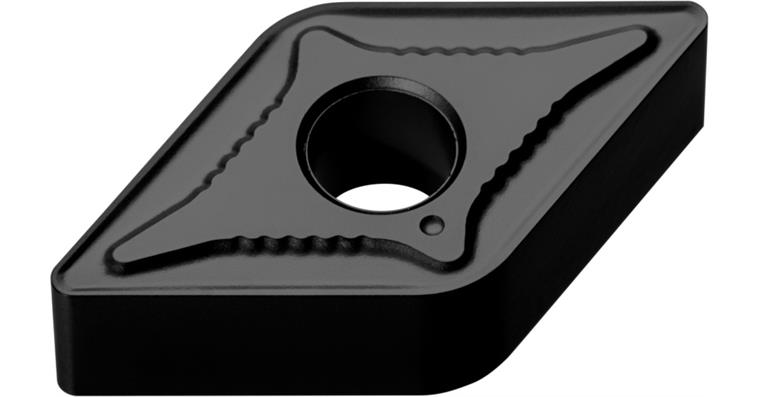

ATORN indexable insert DNMG 150608 roughing RM HC7820

ATORN indexable insert DNMG 150608 roughing RM HC7820

ATORN indexable insert DNMG 150608 roughing RM HC7820
Item no: 1018567 223

Online price:

Available in 4-6 working days.

Advantage
  • Perfect combination of toughness and resistance to wear, for a high degree of process stability and broad range of applications
  • Very robust and stable rake, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820
ISO-Code Rotating: DNMG 150608
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 1.2-4.0 mm
f min./max.: 0.22-0.40 mm/U
Materials group: S (primary application) | M (primary application) | P (primary application)
f min.: 0,22 mm/r
max. f: 0,40 mm/r
max. ap: 4,0 mm
min. ap: 1,2 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 80-220 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875202

EAN no.: 4066107006051

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Indexable drilling insert SCET 070308-UD:D8330 dia. range 22.5 to 27 mm
    13,22 €
  • Indexable drilling insert SCET 120408-UD:D9335 dia. range 35.0 to 44 mm
    16,97 €
  • ATORN indexable insert CCMT 120404 finishing FP HC7520
  •
    ATORN indexable insert CCMT 120404 finishing FM HC7820
  •
    ATORN indexable insert DNMG 110404 finishing FM HC7820
  •
    ATORN indexable insert DNMG 110408 finishing FM HC7820
  •
    ATORN indexable insert TCMT 16T302 finishing FM HC7820
  •

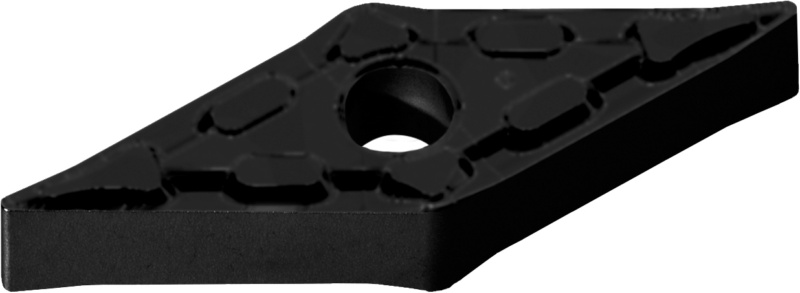

    ATORN indexable insert VNMG 160404 finishing FM HC7820
  •
    ATORN indexable insert VNMG 160408 finishing FM HC7820
  •

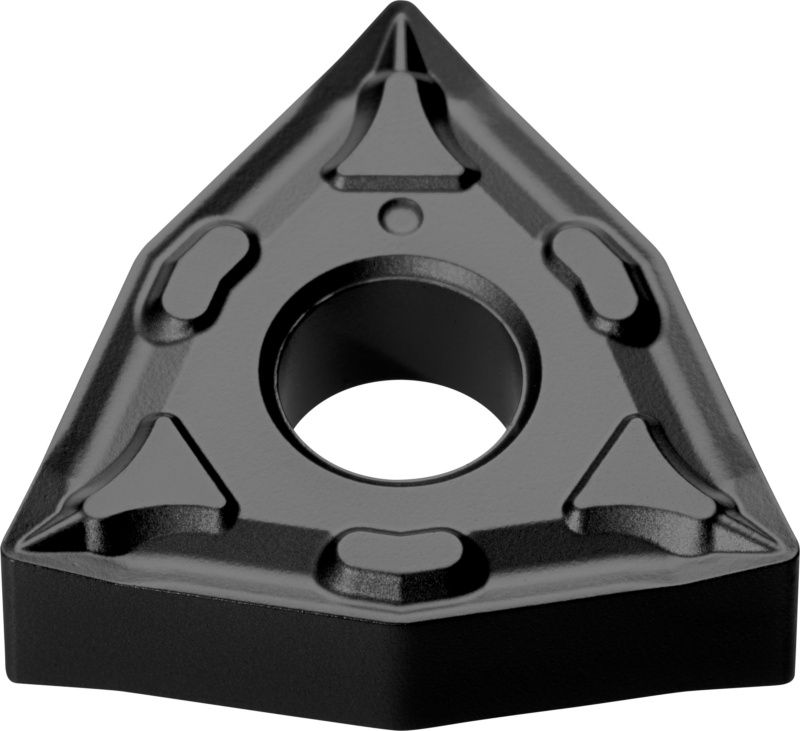

    ATORN indexable insert WNMG 60404 finishing FM HC7820
  •
