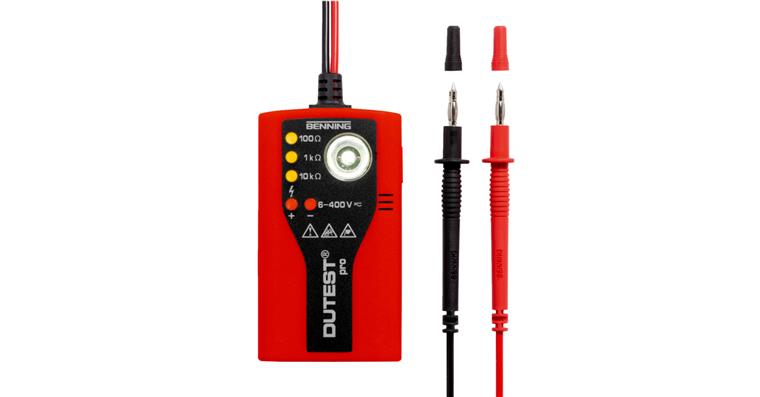

DUTEST® pro continuity and line tester

DUTEST® pro continuity and line tester

DUTEST® pro continuity and line tester
Video
Item no: 1062405 201

Online price:

Available for immediate delivery

Application
For testing of high- and low-impedance.

Execution
  • Continuity and diode testing via LEDs and testing buzzer
  • Visual indicator via 3 LEDs: 0-100 ohms/1 kOhms/10 kOhms
  • Audible indication via test buzzer up to approx. 100 ohms
  • External voltage display: 6-400 V (LEDs/testing buzzer)
  • Polarity testing
  • Single-pole external conductor test (phase)
  • Non-contact open-circuit detector
  • Integrated magnet holder and belt clip on back of housing
  • Measuring category: CAT III 300 V

Advantage
  • Buzzer volume and LED torch brightness individually adjustable in four stages
  • Precise, high-performance LED torch
  • Lampe de poche LED puissante et haute performance (réglable)

Delivery
Incl. measuring lead set

Notes
For replacement batteries, see art. no. 1039900 303.

Brand: BENNING
Min./max. continuity test: 0-100 Ohm
Model: DUTEST PRO
Protected for external voltage up to: 400 V/AC
Display: LED | Audible
Min./max. test current, audible: 0-60 mA
Phase sequence test: Yes
Polarity testing: Yes
Non-contact test: No
Overvoltage protection category: CAT III/300 V
Approval: No
EN standard: 61010
Height: 42 mm
IP protection class: IP 30
Length: 255 mm
Max. continuity test: 100 Ohm
Min. continuity test: 0 Ohm
Vibration control system: No
Weight: 0,23 kg
Width: 69 mm

Manufacturer part no.: 050156

EAN no.: 4014651501560

Product Datasheet
