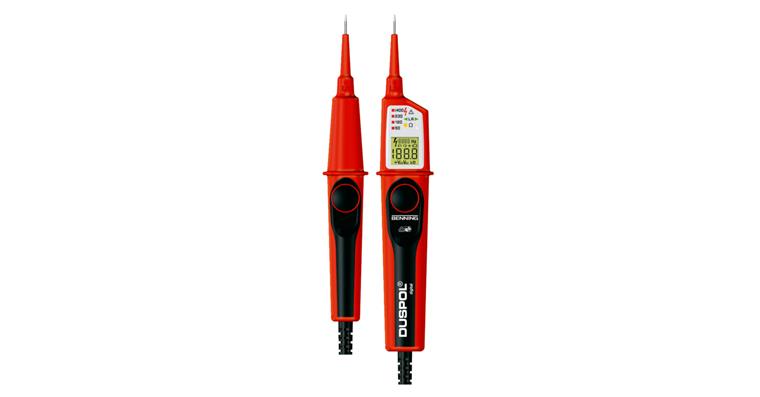

DUSPOL digital two-pole voltage tester 1-1,000 V AC/1,200 V DC (TRUE RMS)

DUSPOL digital two-pole voltage tester 1-1,000 V AC/1,200 V DC (TRUE RMS)

DUSPOL digital two-pole voltage tester 1-1,000 V AC/1,200 V DC (TRUE RMS)
Video
Item no: 1062390 201

Online price:

Available for immediate delivery

Application
Suitable for electrical engineering, industry, maintenance, service (troubleshooting), photovoltaic plants/wind turbines and hybrid vehicle technology.

Execution
  • Display levels: 50, 120, 230, 400 V AC/DC (LED)
  • Audible/visual continuity measurement up to 100 kOhm
  • Resistance measurement: 0.1 kOhm-300 kOhm (LCD)
  • Diode testing: 0.3 V-2 V (LCD)
  • Rotating field direction/phase test (LED), polarity testing (LCD)
  • Frequency measurement: 1 Hz-1,000 Hz
  • Non-contact open-circuit detector
  • Direct display without pushbutton control (high-impedance test)
  • Load connection via pushbutton (low-impedance test)
  • Intentional tripping of the RCD
    • Vibration alarm in the probe handle

    • Measurement point and display lighting

    • IP 65 degree of protection (dust/splash-proof)

    • Rugged housing design with rubberised gripping surface

    • Tested and approved in accordance with: DIN EN 61243-3, (VDE 0682-401) 2015

    • Overvoltage category: CAT IV 600 V, CAT III 1,000 V

Advantage
  • Facile à utiliser
  • Affichage fiable
  • TRUE RMS
  • Affichage haute tension

Delivery
Includes 2 x 1.5 V AAA batteries (voltage display above 50 V even with flat batteries)

Notes
For matching easy-access case, see art. no. 1062381 104.
For replacement batteries, see art. no. 1039900 304.

Brand: BENNING
Min./max. voltage range DC: 1-1200 V/DC
Type: DUSPOL digital
Min./max. voltage range AC: 1-1000 V/AC
Display: Audible | LED/LCD
Max. continuity test: 100 kOhm
Min./max. frequency: 1 / 1000 Hz
Min./max. continuity test: 0-100 kOhm
Min./max. electrical-resistance measuring range: 0.1 kOhm-300 kOhm
Rotating field test: Yes
Phase sequence test: Yes
Polarity testing: Yes
Vibration control system: Yes
Measurement point lighting: Yes
IP protection class: IP 65
Length x width x height: 330 x 85 x 55 mm
Weight: 0,380 kg
Overvoltage protection category: CAT IV/600 V | CAT III/1000 V
Approval: Yes
EN standard: 61243-3
Height: 55 mm
Length: 330 mm
Max. electrical-resistance measuring range: 300 kOhm
Max. frequency: 1000 Hz
Min. continuity test: 0 kOhm
Min. frequency: 1 Hz
Non-contact test: Yes
Width: 85 mm
Diode testing: Yes

Manufacturer part no.: 050263

EAN no.: 4014651502635

Product Datasheet
