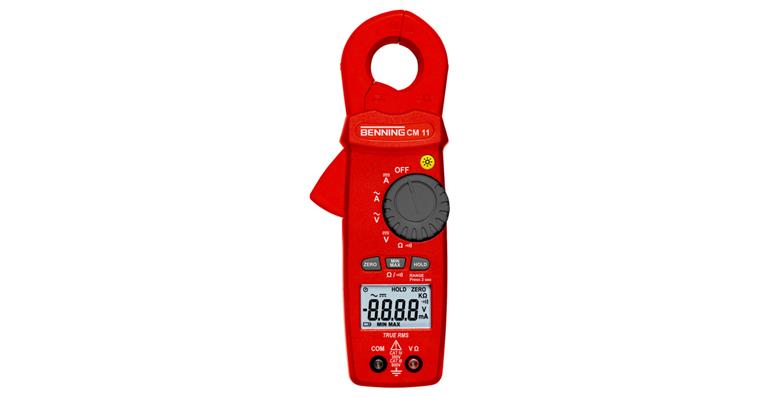

CM 11 digital current clamp multimeter, 4-digit LCD display in bag

CM 11 digital current clamp multimeter, 4-digit LCD display in bag

CM 11 digital current clamp multimeter, 4-digit LCD display in bag
Video
Item no: 1062422 103

Online price:

Still in stock: 2

Application
TRUE RMS Stromzangen-Multimeter für den professionellen Einsatz in der Industrie, im Service und Handwerk

Execution
  • Highest resolution of 0.1 mA AC/DC
  • Ideal for troubleshooting in electrical systems, devices, automotive engineering, controllers (4-20 mA process signals), as well as fire and intrusion alarm systems
  • Wide range of uses for voltage (600 V), resistance (600 kOhm) and continuity testing
  • Standby current measurement for vehicle batteries for monitoring slow battery discharge
  • Fonction ZERO

Delivery
Includes compact case, battery and measuring leads

Notes
For replacement batteries, see art. no. 1039900 304.

Brand: BENNING
Display range: 6000 digits
Measuring accuracy: +/- 1 %
Min./max. test voltage (DC): 0.1 mV/DC-600 V/DC
Min./max. test voltage (AC): 0.01 V/AC-600 V/AC
Min./max. alternating current of measuring range: 100 µA-20 A/AC
Min./max. direct current of measuring range: 100 µA-10 A/DC
Continuity testing: Yes
Diode testing: No
Min./max. electrical-resistance measuring range: 0.1 Ohm-600 kOhm
Measuring procedure: TRUE RMS
Overvoltage protection category: CAT IV/300 V | CAT III/600 V
Length x width x height: 206 x 76 x 33 mm
Max. collet opening: 23 mm
Display: 4-line LCD
EN standard: 61010
Height: 33 mm
Length: 206 mm
Max. direct current of measuring range: 10 A/DC
Min. direct current of measuring range: 100 µA
Width: 76 mm
Max. alternating current of measuring range: 20 A/AC
Max. test voltage (AC): 600 V/AC
Max. test voltage (DC): 600 V/DC
Min. alternating current of measuring range: 100 µA
Min. test voltage (AC): 0,01 V/AC
Min. test voltage (DC): 0,1 mV/DC

Manufacturer part no.: 044067

EAN no.: 4014651440678

Product Datasheet
Keywords:

[Text nicht gefunden]

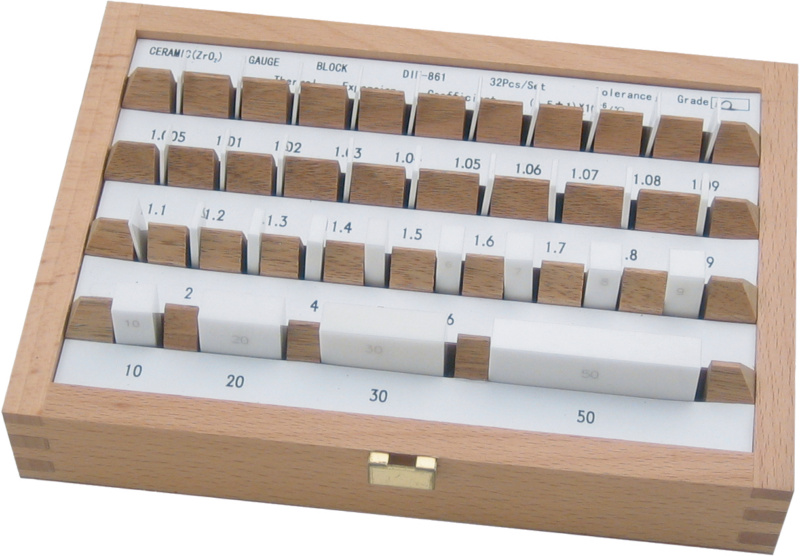

  • ATORN gauge blocks 32 pieces in case ceramic tolerance class 0
  •

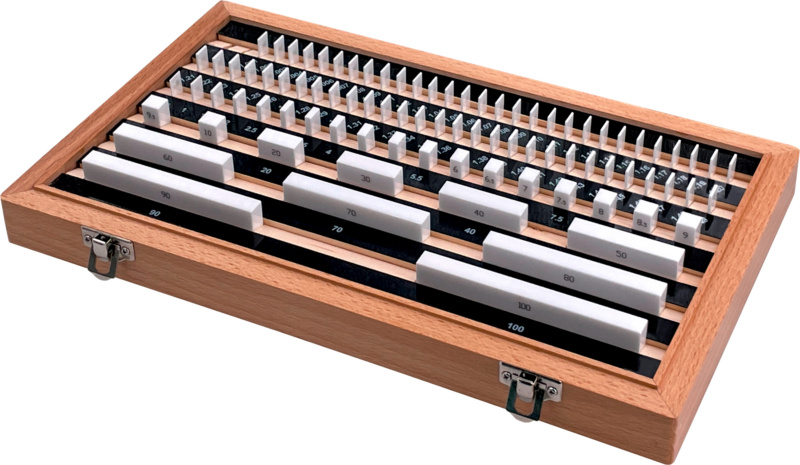

    ATORN gauge blocks 87 pieces in case ceramic tolerance class 0
  •
