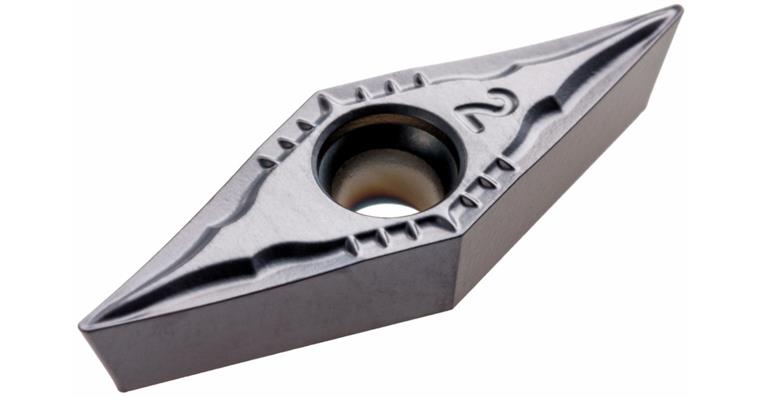

ATORN carbide indexable insert VCMT 110308-MM3 APM25T

ATORN carbide indexable insert VCMT 110308-MM3 APM25T

ATORN carbide indexable insert VCMT 110308-MM3 APM25T
Item no: 1019425 133

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for protection against ridge cracking and temperature influences
  • For excellent surface quality


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: APM25T
ISO-Code Rotating: VCMT 110308
Material to be processed: Stainless steel | Steel
min./max. ap: 0.5-3.0 mm
f min./max.: 0.12-0.21 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,12 mm/r
max. f: 0,21 mm/r
max. ap: 3,0 mm
min. ap: 0,5 mm
Supply type: Medium finishing
Chip breaker code: MM3
Min./max. Vc in steel: 60-250 m/min
Min./max. Vc in stainless steel: 60-250 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370922

EAN no.: 4050293730777

Product Datasheet
