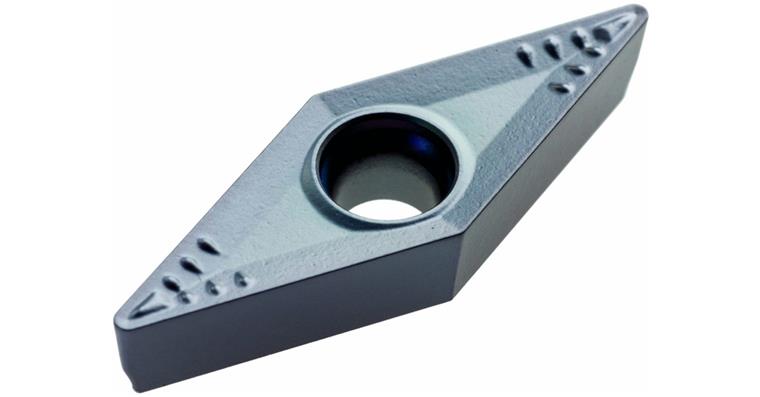

ATORN carbide indexable insert VBMT 160404-MM3 APM35T

ATORN carbide indexable insert VBMT 160404-MM3 APM35T

ATORN carbide indexable insert VBMT 160404-MM3 APM35T
Item no: 1019423 140

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for protection against ridge cracking and temperature influences
  • Universal use


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: B
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: PVC
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M35
Carbide type: APM35T
ISO-Code Rotating: VBMT 160404
Material to be processed: Steel | Stainless steel
min./max. ap: 0.25-3.5 mm
f min./max.: 0.12-0.3 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,12 mm/r
max. f: 0,3 mm/r
max. ap: 3,5 mm
min. ap: 0,25 mm
Supply type: Medium finishing
Chip breaker code: MM3
Min./max. Vc in steel: 60-250 m/min
Min./max. Vc in stainless steel: 60-250 m/min

ATORN-No.: 12370896

EAN no.: 4050293730517
