ATORN TC indexable insert CNMG 120408-FP1 ACP15T

ATORN TC indexable insert CNMG 120408-FP1 ACP15T

ATORN TC indexable insert CNMG 120408-FP1 ACP15T
Item no: 1019403 103

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Machining conditions for indexable insert: Good
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Carbide type ISO: P15
Carbide type: ACP15T
ISO-Code Rotating: CNMG 120404
Material to be processed: Steel | Cast metal
min./max. ap: 0.25-5.0 mm
f min./max.: 0.15-0.4 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,15 mm/r
max. f: 0,4 mm/r
max. ap: 5,0 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP5
Min./max. Vc in steel: 220-400 m/min
Min./max. Vc in cast iron: 140-370 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370001

EAN no.: 4050293564143

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

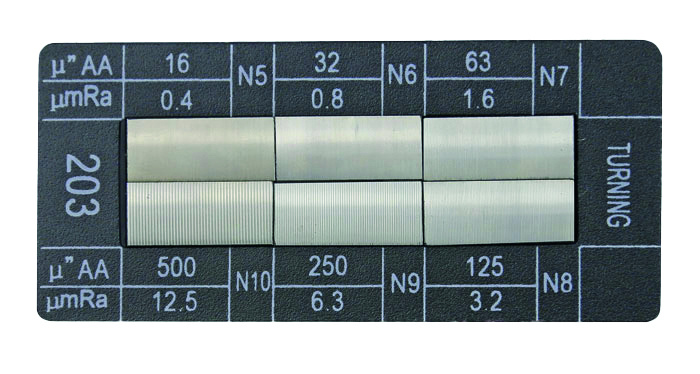

  • Surface specimen plate turning, 6 reference specimens N5-N10
  •
