ATORN indexable insert CCMT 120408 finishing FM HC7820

ATORN indexable insert CCMT 120408 finishing FM HC7820

ATORN indexable insert CCMT 120408 finishing FM HC7820
Item no: 1018553 225

Online price:

Available in 4-6 working days.

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Medium
Carbide type ISO: M10 | M30 | S10 | S30 | P15 | P25
Carbide type: HC7820
ISO-Code Rotating: CCMT 120408
min./max. ap: 0.1-1.5 mm
f min./max.: 0.08-0.2 mm/U
f min.: 0,08 mm/r
max. f: 0,2 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in steel: 50-130 m/min
Min./max. Vc in stainless steel: 90-210 m/min
Min./max. Vc in special alloys: 40-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875186

EAN no.: 4066107005894

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Indexable drilling insert SCET 070308-UD:D9335 dia. range 22.5 to 27 mm
    13,22 €
  • ATORN mini boring bar holder IC 1608R
    378,40 €
  • ATORN indexable insert CCMT 120404 finishing FP HC7520
    --
  • ATORN indexable insert CCMT 120408 finishing FP HC7520
    --
  • ATORN indexable insert CCMT 120404 finishing FM HC7820
    9,64 €

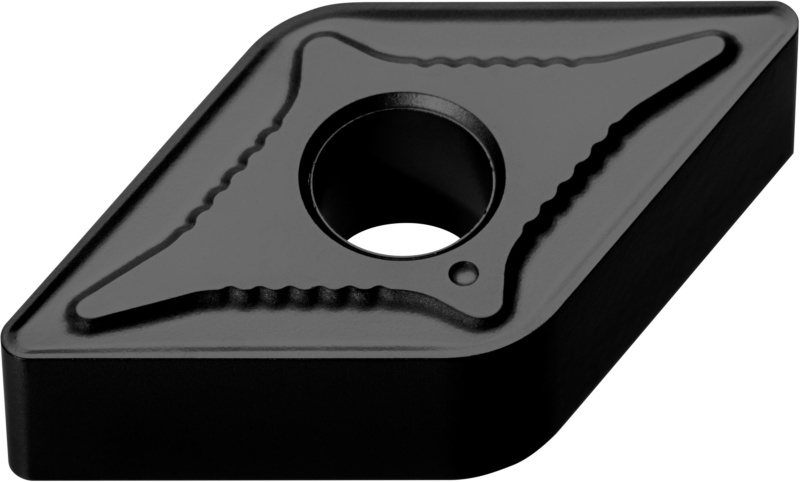

  • ATORN indexable insert DNMG 150608 roughing RM HC7820
    12,64 €

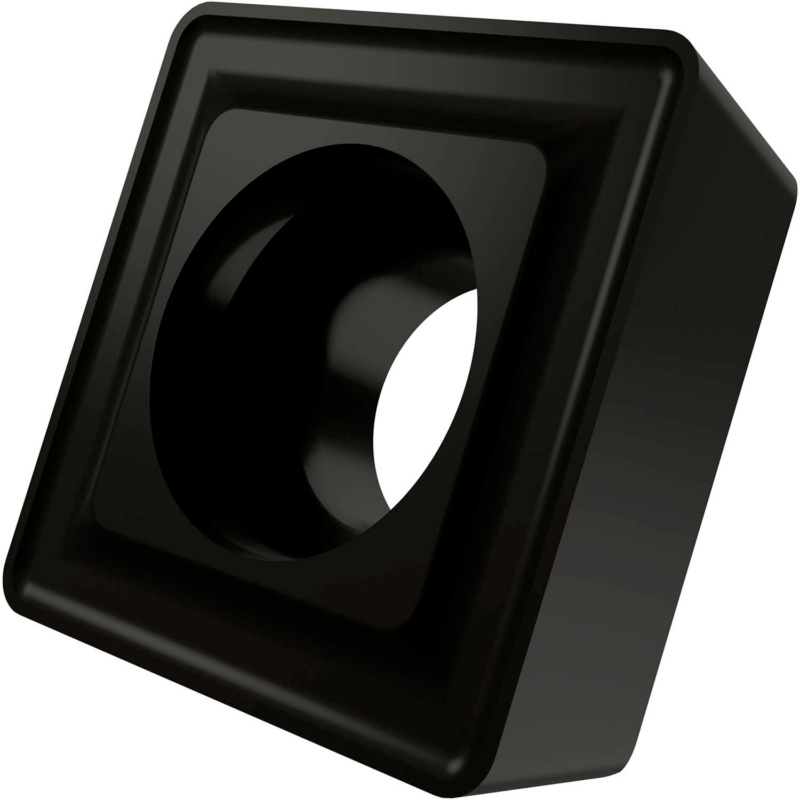

  • ATORN indexable insert SNMG 120408 roughing RM HC7520

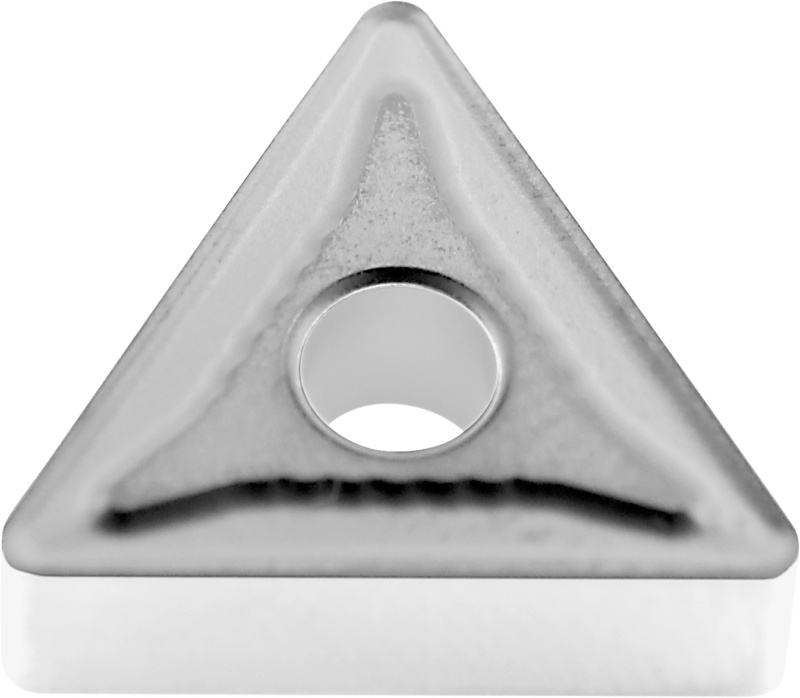

  • ATORN indexable insert TNMG 160408 roughing RM HC7520
