ATORN indexable insert CCMT 09T304-FM2 ACM25T-1

ATORN indexable insert CCMT 09T304-FM2 ACM25T-1

ATORN indexable insert CCMT 09T304-FM2 ACM25T-1
Item no: 1018551 909

Online price:

Available in 6-8 working days.

Notes
Indexable insert CCMT 060202-FM2 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Carbide type area ISO: S | M
Machining conditions for indexable insert: Medium
Carbide type ISO: M15 | M30 | S15 | S30
Carbide type: ACM25T-1
ISO-Code Rotating: CCMT 09T304
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.11-2 mm
f min./max.: 0.06-0.23 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,06 mm/r
max. f: 0,23 mm/r
max. ap: 2 mm
min. ap: 0,11 mm
Supply type: Smoothing
Chip breaker code: FM2
Min./max. Vc in stainless steel: 55-230 m/min
Min./max. Vc in special alloys: 25-145 m/min

ATORN-No.: 12350437

EAN no.: 4066107025564

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN carbide indexable insert VBMT 160404-MM3 APM35T
  •
    ATORN cemented carbide indexable insert CCGT 060204-MN5 AWN15T
  •
    ATORN carbide indexable insert DNMG 150604-MP5 ACP25T
  •
    ATORN carbide indexable insert DNMG 110408-MM5 APM25T
  •
    ATORN cemented carbide indexable insert DNGP 150404-FM5 APM20T
  •
    ATORN wedge clamping device with claws, including sliding block 50 x 15 mm M 8
  •
    ATORN indexable insert XCNT 120520 SN-TR HC4410
  •
    ATORN carbide indexable insert CNMM 190616-RP9 ACP25T
  •
    ATORN indexable insert VNMG 160408-MPL ACP15T-1
  •
    ATORN carbide indexable insert CNMM 250932-RP9 ACP25T
  •

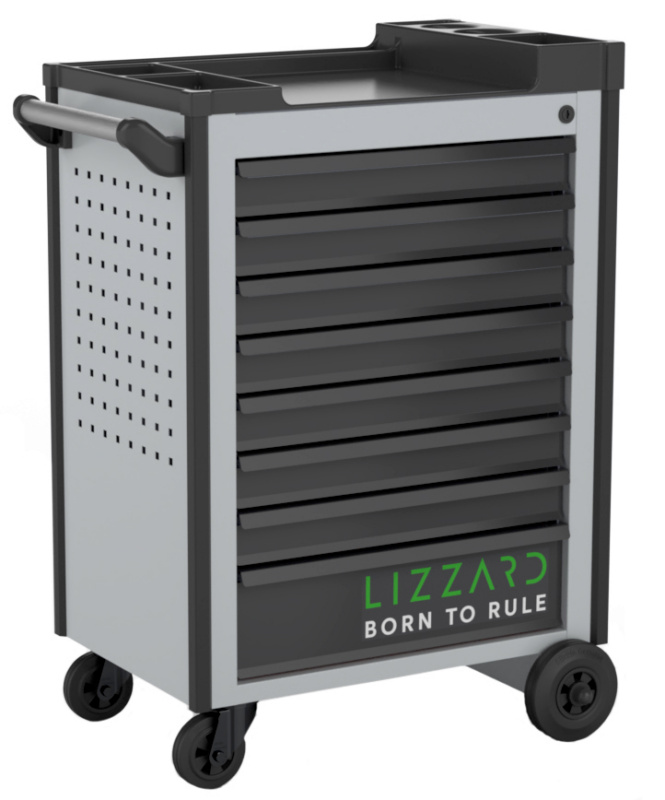

    Workshop trolley 8 drawers HxWxD 925 x 645 x 425 mm, RAL7035/7016
  •
