ATORN indexable insert CCMT 09T304-MM2 APM20T-1

ATORN indexable insert CCMT 09T304-MM2 APM20T-1

ATORN indexable insert CCMT 09T304-MM2 APM20T-1
Item no: 1018551 914

Online price:

Available for immediate delivery

Notes
Indexable insert CCMT 060204-MM2 APM20T-1

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Carbide type area ISO: M | S
Machining conditions for indexable insert: Good
Carbide type ISO: S10 | S30 | M30 | M10
Carbide type: APM20T-1
ISO-Code Rotating: CCMT 09T304
Material to be processed: Special alloy | Stainless steel
min./max. ap: 0.25-3 mm
f min./max.: 0.08-0.23 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,08 mm/r
max. f: 0,23 mm/r
max. ap: 3 mm
min. ap: 0,25 mm
Supply type: Smoothing
Chip breaker code: MM2
Min./max. Vc in stainless steel: 90-220 m/min
Min./max. Vc in special alloys: 35-145 m/min

ATORN-No.: 12350511

EAN no.: 4066107026301

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN indexable insert RCMX 2006M0-MP6 ACP25T-1
  • ATORN indexable insert TCMT 06T108-FP1 ACP25T-1
  • ATORN indexable insert CCMT 09T308-FM2 ACM25T-1
  • ATORN indexable insert CCMT 09T308-MM2 APM20T-1
  • LIZZARD WERKSTATT-DREHHOCKER HOLZSITZ H450-570 RAL 3002
  • ATORN indexable insert RCMT 2006M0-MP6 ACP25T-1
  • ATORN carbide indexable insert TCMT 110204-MM3 APM35T

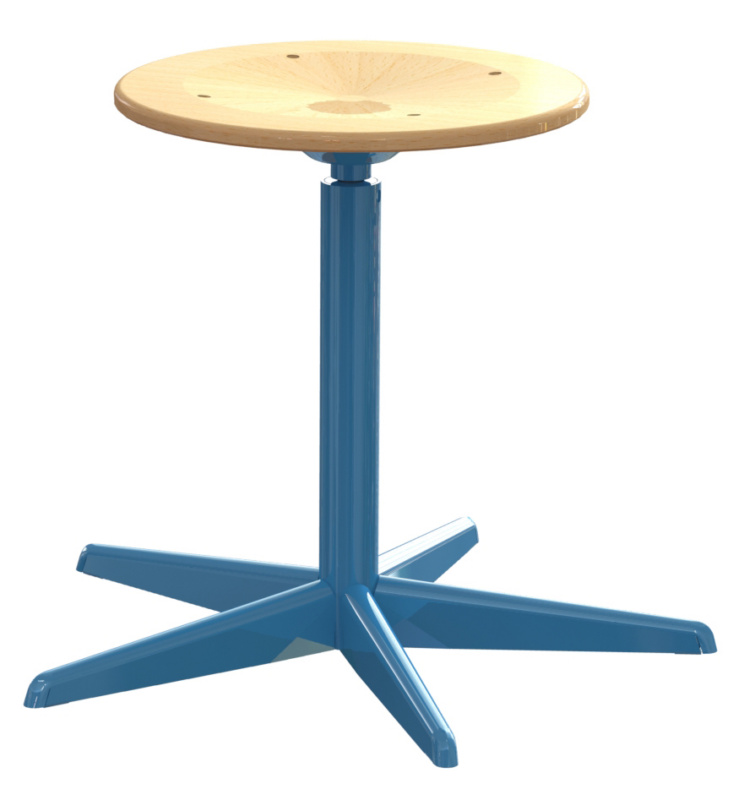

  • LIZZARD WERKSTATT-DREHHOCKER HOLZSITZ H450-570 RAL 5015
