Carbide cutting insert MINI-CUT left LS08.150.02 finishing insert HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS08.150.02 finishing insert HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS08.150.02 finishing insert HC8620/TiAlN
Item no: 1018342 201

Online price:

Available in 6-8 working days.

Execution
Carbide/HC8620 TiAlN-coated

Notes
Maximum cutting depth = 0.02 mm

Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
f min./max.: 0.01-0.1 mm/U
Cutting material: Carbide
Machining direction: Left
Max. depth (t max.): 1,0 mm

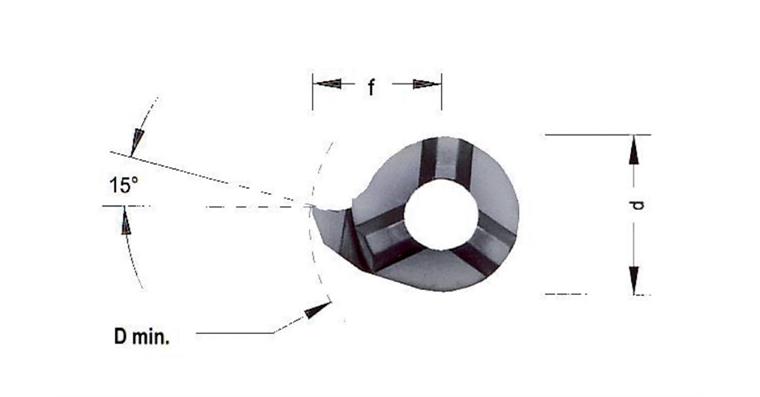

Min. drill hole diameter (D min.): 8,0 mm
Programming size 1 (s): 3,3 mm
Programming size 2 (d): 6,0 mm
Programming size 3 (f): 4,8 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 608
Width of cutting edge (b + 0,03): 1,5 mm

Manufacturer part no.: 11961092

EAN no.: 4050293283648

Product Datasheet
