Carbide cut. insert MINI-CUT rgt RS11.4545.02 chamfer swivel plate HC8620/TiAlN

Carbide cut. insert MINI-CUT rgt RS11.4545.02 chamfer swivel plate HC8620/TiAlN

Carbide cut. insert MINI-CUT rgt RS11.4545.02 chamfer swivel plate HC8620/TiAlN
Item no: 1018348 102

Online price:

Available in 6-8 working days.

Application
Chamfering and extracting.

Execution
Carbide/HC8620 TiAlN-coated

Notes
Ap max. = max. cutting depth

Brand: DUEMMEL
Cutting material: Carbide
Machining direction: Right
max. ap: 1,0 mm
Max. depth (t max.): 1,5 mm

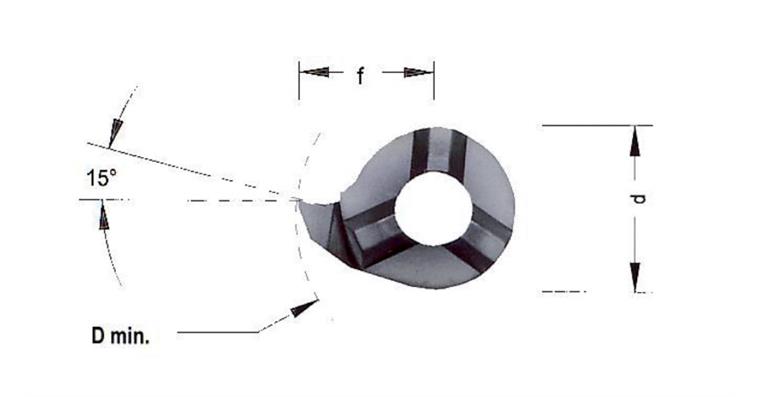

Min. drill hole diameter (D min.): 11,0 mm
Programming size 1 (s): 8 mm
Programming size 2 (d): 6,7 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 611
Width of cutting edge (b + 0,03): 4,3 mm

Manufacturer part no.: RS11.4545.02/AL41F

EAN no.: 4050293294477

Product Datasheet
