Carbide cutting ins. MINI-CUT right RS14.4787.02 rel. grooving ins. HC8620/TiAlN

Carbide cutting ins. MINI-CUT right RS14.4787.02 rel. grooving ins. HC8620/TiAlN

Carbide cutting ins. MINI-CUT right RS14.4787.02 rel. grooving ins. HC8620/TiAlN
Item no: 1018345 103

Online price:

Available for immediate delivery

Application
Extraction, internal relief grooves (DIN 509).

Execution
Carbide/HC8620 TiAlN-coated

Notes
Ap max. = max. cutting depth
Angle W1 = 47°

Brand: DUEMMEL
Cutting material: Carbide
Machining direction: Right
max. ap: 0,8 mm
Max. depth (t max.): 3,0 mm

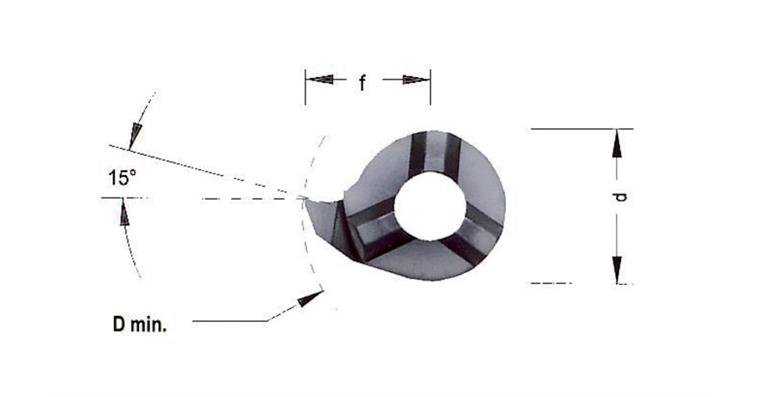

Min. drill hole diameter (D min.): 13,7 mm
Programming size 1 (s): 5,3 mm
Programming size 2 (d): 9,0 mm
Programming size 3 (f): 8,7 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 614

Manufacturer part no.: 11962293

EAN no.: 4050293295658

Product Datasheet
