Carbide cut. insert MINI-CUT right RS011.0160 circlip grooves HC8620/TiAlN

Carbide cut. insert MINI-CUT right RS011.0160 circlip grooves HC8620/TiAlN

Carbide cut. insert MINI-CUT right RS011.0160 circlip grooves HC8620/TiAlN
Item no: 1018340 112

Online price:

Available in 6-8 working days.

Application
For circlip grooves.

Execution
Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
f min./max.: 0.01-0.1 mm/U
Cutting material: Carbide
Machining direction: Right
Max. depth (t max.): 2,3 mm

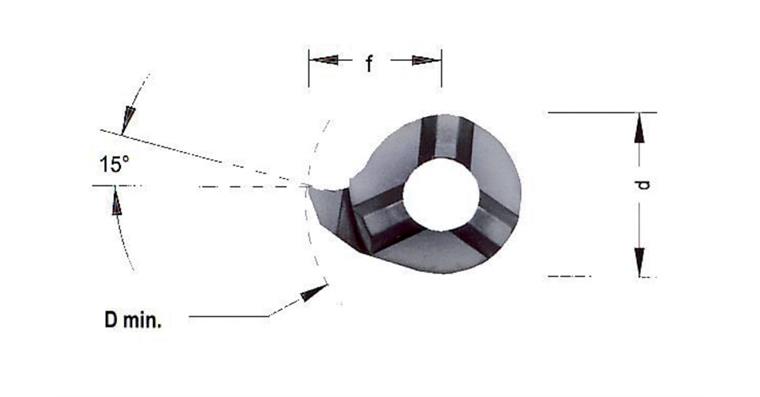

Min. drill hole diameter (D min.): 11,0 mm
Programming size 1 (s): 4,2 mm
Programming size 2 (d): 8,0 mm
Programming size 3 (f): 6,7 mm
Suitable for material group H: 2
Suitable for material group K: 2
Suitable for material group M: 2
Suitable for material group N: 2
Suitable for material group P: 2
Suitable for material group S: 2
Type description (für Klemmhalter Typ): 611
Width of cutting edge (b + 0,03): 1,70 mm

Manufacturer part no.: 11961851

EAN no.: 4050293291230

Product Datasheet
