Carbide cutting insert MINI-CUT left LS16.030R15 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS16.030R15 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS16.030R15 full radius HC8620/TiAlN
Item no: 1018343 216

Online price:

Available in 6-8 working days.

Execution
  • Full radius
  • Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
Cutting material: Carbide
Machining direction: Left
Max. depth (t max.): 4,3 mm
Min. drill hole diameter: 16,0 mm
Programming size 1 (s): 5,4 mm
Programming size 2 (d): 11,0 mm
Programming size 3 (f): 10,2 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 616
Width of cutting edge (b + 0,05): 3,0 mm

Manufacturer part no.: 11961420

EAN no.: 4050293286922

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Carbide cutting insert MINI-CUT left LS14.020R10 full radius HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS016.0090 circlip grooves HC8620/TiAlN
  •
    Carbide cut. insert MINI-CUT right RS011.0090 circlip grooves HC8620/TiAlN
  •
    Carbide cutting insert MINI-CUT left LS11.020R10 full radius HC8620/TiAlN
  •
    3/8 inch bi-hexagon socket long, dynamic drive profile AF 19/32 inch
  •
    ATORN mini cut insert S, grooving int. radius D min = 8.4mm A8 0.8mm x 0.4mm
  •
    Carbide cut. insert MINI-CUT right RS008.0130 circlip grooves HC8620/TiAlN
  •

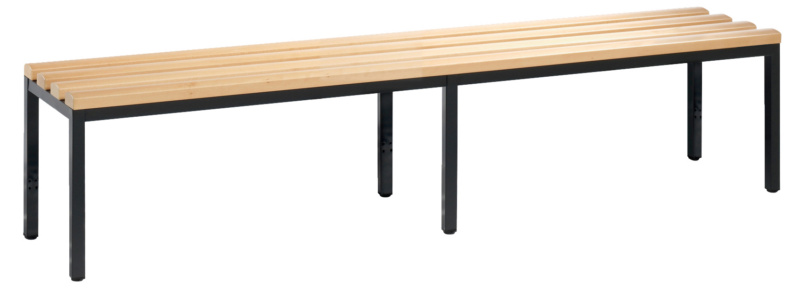

    Free-standing bench seat 4 feet without shoe rack HxWxD 420x1960x353 mm
  •
