Carbide cutting insert MINI-CUT left LS16.022R11 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS16.022R11 full radius HC8620/TiAlN

Carbide cutting insert MINI-CUT left LS16.022R11 full radius HC8620/TiAlN
Item no: 1018343 215

Online price:

Available in 6-8 working days.

Execution
  • Full radius
  • Carbide/HC8620 TiAlN-coated


Brand: DUEMMEL
Min./max. Vc in steel: 70-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in cast iron: 30-180 m/min
Cutting material: Carbide
Machining direction: Left
Max. depth (t max.): 4,3 mm
Min. drill hole diameter: 16,0 mm

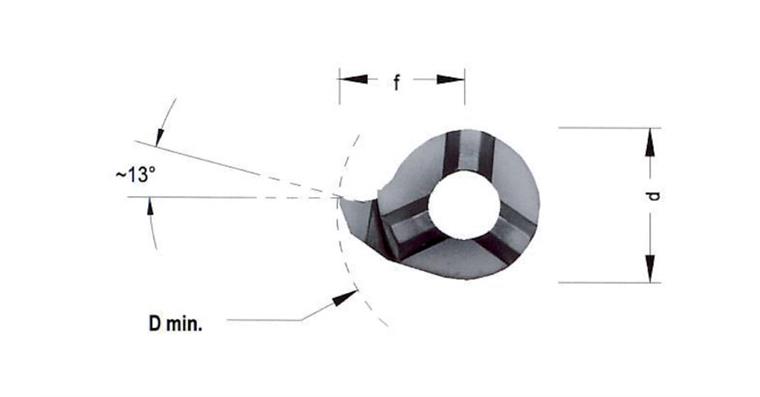

Programming size 1 (s): 5,4 mm
Programming size 2 (d): 11,0 mm
Programming size 3 (f): 10,2 mm
Suitable for material group H: 2
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 2
Suitable for material group P: 1
Suitable for material group S: 1
Type description (für Klemmhalter Typ): 616
Width of cutting edge (b + 0,05): 2,2 mm

Manufacturer part no.: 11961419

EAN no.: 4050293286915

Product Datasheet
