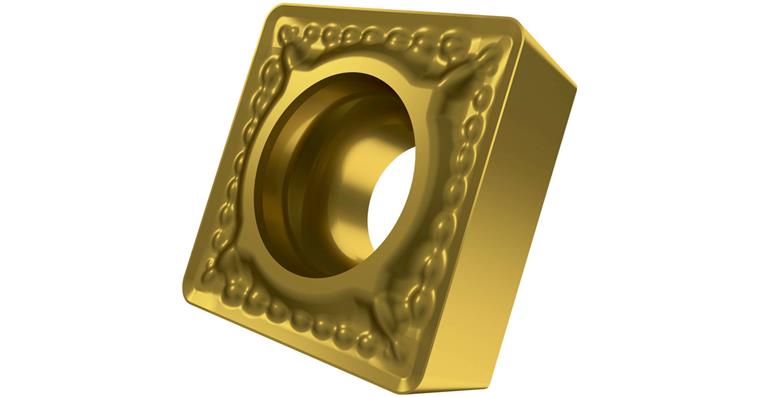

Indexable drilling insert SCET 120408-SD:D8330 dia. range 35.0 to 44 mm

Indexable drilling insert SCET 120408-SD:D8330 dia. range 35.0 to 44 mm

Indexable drilling insert SCET 120408-SD:D8330 dia. range 35.0 to 44 mm
Item no: 1011181 116

Online price:

Available for immediate delivery

Application
High-performance indexable inserts

Execution
SD geometry in a positive design for outer indexable insert

Advantage
Suitable for various materials


Brand: DORMER PRAMET
ISO name: SCET 120408-SD
Surface: Coated
Cutting material: SC
Suitable for min./max. cutting diameter: 35-44 mm
Number of cutting edges: 4
Inner circle diameter (IC): 12,70 mm
Cutting edge length (L): 12,70 mm
Mounting bore diameter (D1): 5,60 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: D8330
Coating: PVD
Materials group: P (primary application) | M (primary application) | K (secondary application) | S (secondary application)
Carbide type area ISO: P | M | K | S
Carbide type ISO: P20 | P35 | M15 | M30 | K15 | K35 | S10 | S20
Min./max. Vc in steel: 140-165 m/min
Min./max. f in steel: 0.09-0.22 mm/U
Min./max. Vc in stainless steel: 80-95 m/min
Min./max. f in stainless steel: 0.10-0.20 mm/U
Min./max. Vc in cast iron: 130-155 m/min
Min./max. f in cast iron: 0.09-0.22 mm/U
Min./max. Vc in special alloys: 25-45 m/min
Min./max. f in special alloys: 0.10-0.15 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 6920801

EAN no.: 3603603074231

Product Datasheet
