Brand: DORMER PRAMET

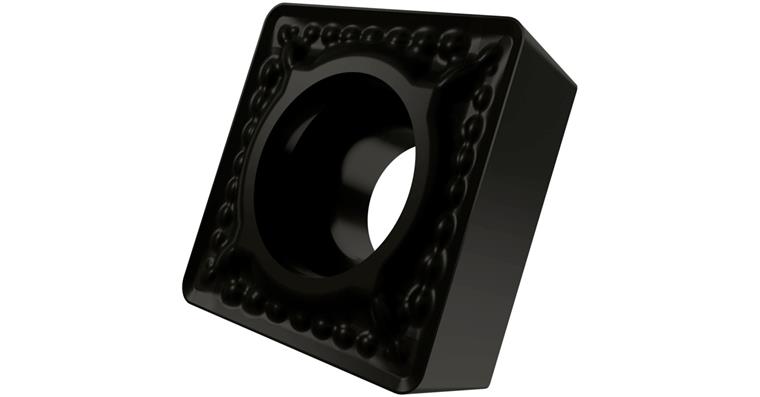

ISO name: SCET 120408-SD
Surface: Coated
Cutting material: SC
Suitable for min./max. cutting diameter: 35-44 mm
Number of cutting edges: 4
Inner circle diameter (IC): 12,70 mm
Cutting edge length (L): 12,70 mm
Mounting bore diameter (D1): 5,60 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: D9335
Coating: CVD
Materials group: S (secondary application) | K (secondary application) | P (primary application) | M (primary application)
Carbide type area ISO: P | S | K | M
Carbide type ISO: S20 | K35 | P35 | P20 | M30 | K15 | S10 | M15
Min./max. Vc in steel: 170-240 m/min
Min./max. f in steel: 0.09-0.22 mm/U
Min./max. Vc in stainless steel: 100-140 m/min
Min./max. f in stainless steel: 0.10-0.20 mm/U
Min./max. Vc in cast iron: 160-225 m/min
Min./max. f in cast iron: 0.09-0.22 mm/U
Min./max. Vc in special alloys: 30-70 m/min
Min./max. f in special alloys: 0.10-0.15 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 6920802

EAN no.: 3603603074248
