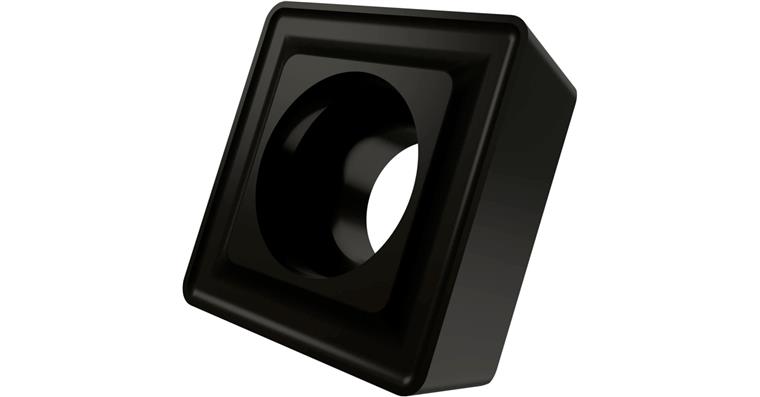

Indexable drilling insert SCET 120408-UD:D9335 dia. range 35.0 to 44 mm

Indexable drilling insert SCET 120408-UD:D9335 dia. range 35.0 to 44 mm

Indexable drilling insert SCET 120408-UD:D9335 dia. range 35.0 to 44 mm
Item no: 1011181 119

Online price:

Available for immediate delivery

Application
High-performance indexable insert

Execution
UD geometry with universal design for outer indexable insert

Advantage
Suitable for various materials


Brand: DORMER PRAMET
ISO name: SCET 120408-UD
Surface: Coated
Cutting material: SC
Suitable for min./max. cutting diameter: 35-44 mm
Number of cutting edges: 4
Inner circle diameter (IC): 12,70 mm
Cutting edge length (L): 12,70 mm
Mounting bore diameter (D1): 5,60 mm
Corner radius (RE): 0,8 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: D9335
Coating: CVD
Materials group: P (primary application) | K (primary application)
Carbide type area ISO: P | K
Carbide type ISO: P20 | P35 | K15 | K35
Min./max. Vc in steel: 170-240 m/min
Min./max. f in steel: 0.09-0.22 mm/U
Min./max. Vc in cast iron: 160-225 m/min
Min./max. f in cast iron: 0.09-0.22 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 6754584

EAN no.: 3603602899507

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Indexable drilling insert SCET 060204-SD:D9335 dia. range 19.5 to 22 mm
  • Indexable drilling insert SCET 060204-UD:D9335 dia. range 19.5 to 22 mm
  • Indexable drilling insert SCET 070308-UD:D8330 dia. range 22.5 to 27 mm
  • Indexable drilling insert SCET 120408-SD:D8330 dia. range 35.0 to 44 mm
  • Indexable drilling insert SCET 120408-UD:D8330 dia. range 35.0 to 44 mm
  • Broaching set NPU 5 pieces drill hole diameter from 6 mm tolerance class JS9

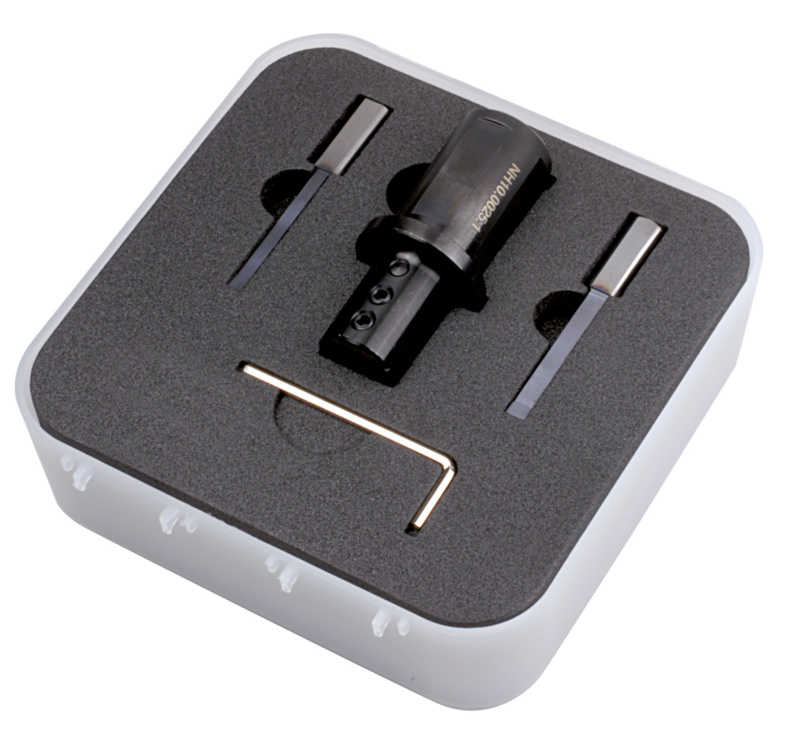

  • Broaching set NP10 4 pieces drill hole diameter from 10 mm tolerance class JS9

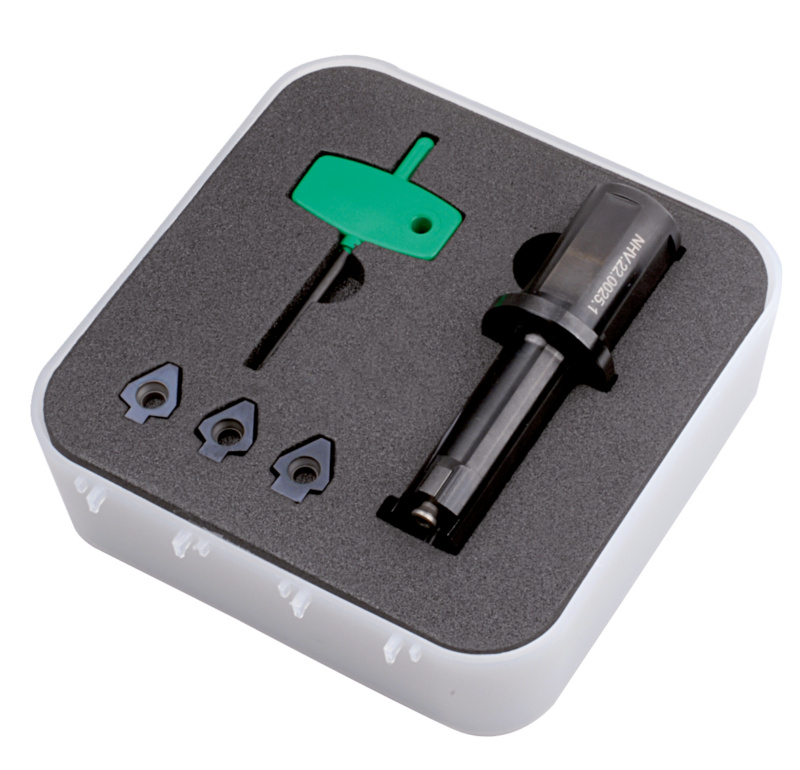

  • Broaching set NPV 5 pieces drill hole diameter from 22 mm tolerance class JS9

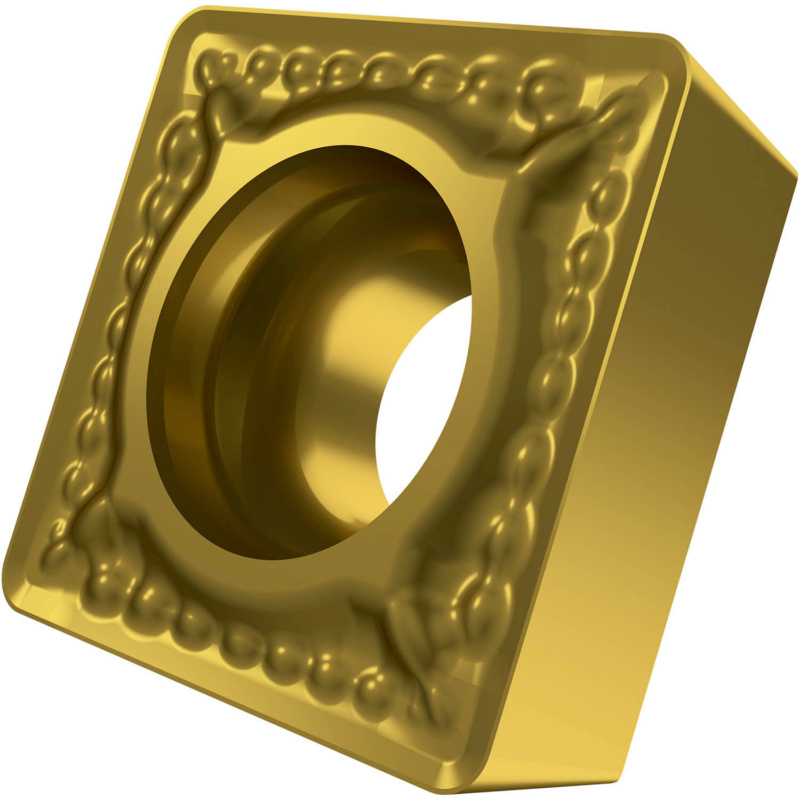

  • ATORN indexable insert SNMG 120412-RM1 ACM25T-1
