Broaching set NP10 4 pieces drill hole diameter from 10 mm tolerance class JS9

Broaching set NP10 4 pieces drill hole diameter from 10 mm tolerance class JS9

Broaching set NP10 4 pieces drill hole diameter from 10 mm tolerance class JS9
Item no: 1018360 102

Online price:

Available in 6-8 working days.

Application
Broaching on CNC lathes, milling machines and machining centres. Broaching longitudinal grooves in accordance with DIN 6885.

Execution
  • Bore diameter from 10 mm
  • Cutting inserts and cutting plates with light seat in accordance with DIN 6885
  • Tolerance class JS9

Delivery
Set: NP10
Bore dia. from mm: 10

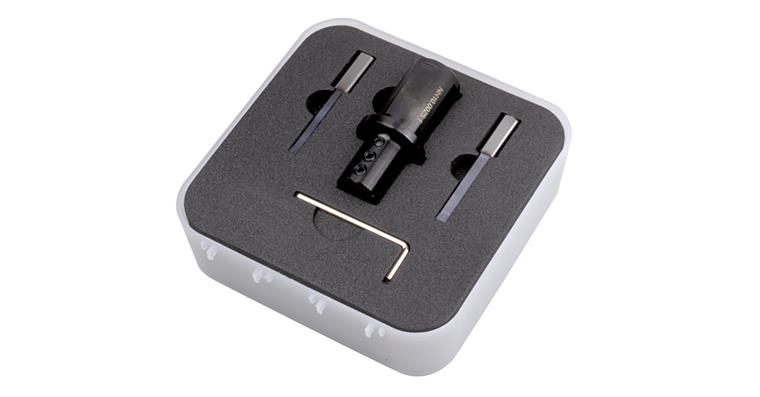

Contents: 4 pieces
1x clamp holder NH10.0025.1
1x cutting insert NP10.400.02.3 for groove width 4 mm
1x cutting insert NP10.500.02.3 for groove width 5 mm
1x hex key


Brand: DUEMMEL

Manufacturer part no.: 11964350

EAN no.: 4050293316223

Product Datasheet
