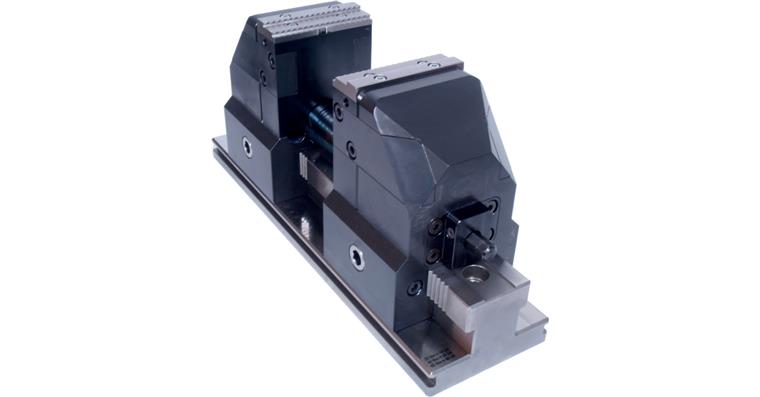

ATORN 5-axis centring vice AZS-100 clamping width 12–256 mm clamping force 40 kN

ATORN 5-axis centring vice AZS-100 clamping width 12–256 mm clamping force 40 kN

ATORN 5-axis centring vice AZS-100 clamping width 12–256 mm clamping force 40 kN
Item no: 1003270 026

Online price:

Available in 4-6 working days.

Application
For NC machines, machining centres, tool manufacturing, mould making, fixture construction and series production.

Execution
  • All guidance faces hardened and polished
  • Low torque for high clamping force
  • Integrated drill holes with 200 mm pitch for ATORN zero-point clamping system
  • Low-lying spindle for improved accessibility
  • Clamping force details on basic body
  • Scaling for quick adjustment and orientation guide on basic body

Advantage
  • Extremely stiff for low vibration
  • Quick conversion to fixed jaw clamp
  • Simple and straightforward to handle; the system can be changed over very quickly
  • Optimised interfering edge design

Delivery
1x AZS-100 vice; including 1 set of 3.5 mm grip jaws, 1x short shaft and 4x adjustable clamps


Brand: ATORN
Type: AZS-100
Jaws width: 100 mm
Body height: 200 mm
Body width: 120 mm
Body length: 420 mm
Min./max. clamping width: 12-256 mm
Tension force: 40 kN
Weight: 42 kg
Width across flats: 13 mm

ATORN-No.: 22700001

EAN no.: 4050293715996
