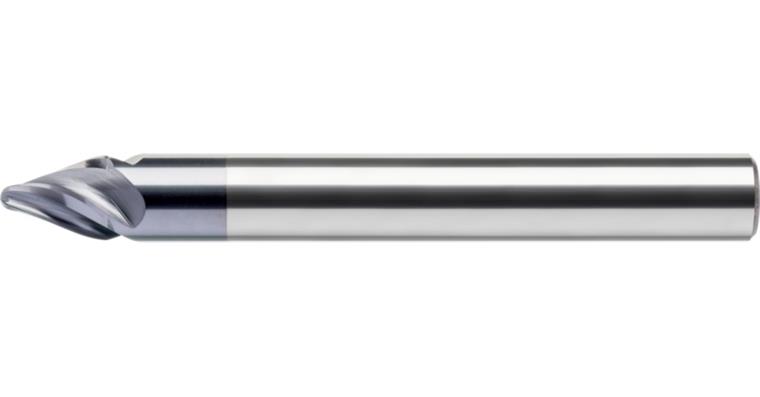

ATORN barrel cutter, length 120 mm, shaft diameter 16 mm, diameter 2–8 mm, ULTRA

ATORN barrel cutter, length 120 mm, shaft diameter 16 mm, diameter 2–8 mm, ULTRA

ATORN barrel cutter, length 120 mm, shaft diameter 16 mm, diameter 2–8 mm, ULTRA
Item no: 1016833 405

Online price:

Available in 6-8 working days.

Application
Barrel milling cutters revolutionise finishing on 5-axis milling machines. Due to the larger radii, you can achieve significantly higher infeeds with improved surfaces.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • Conical design
  • Forming tolerance of +/-0.01
  • ULTRA coated
  • Defined edge rounding
  • α/2 is the recommended angle to the surface

Advantage
  • Suitable for deep cavities and steep areas
  • Reduced machining times thanks to large line skips
  • Highly economical
  • Improved surfaces thanks to large radii


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 15°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 18 mm
Length: 120 mm
Shank diameter: 16 mm
fz steel 1000: 0,096 mm

ATORN-No.: 12040853

EAN no.: 4050293635614

Product Datasheet
