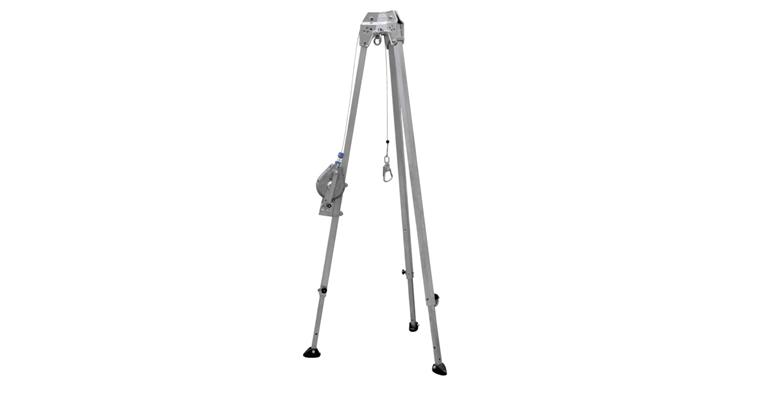

Tripod DB-A3 made of aluminium load capacity max. 300 kg height 1433-2544 mm

Tripod DB-A3 made of aluminium load capacity max. 300 kg height 1433-2544 mm

Tripod DB-A3 made of aluminium load capacity max. 300 kg height 1433-2544 mm
Item no: 1093010 967

Online price:

Availability on demand

Application
Mobile anchor point.

Execution
  • Height-adjustable tripod in lightweight aluminium construction
  • Legs can be folded out to 3 angle settings
  • 3 internal VA deflection rollers for ropes from dia. 4.8 mm–11 mm
  • 3 fall arrest/attachment eyelets
  • Foldable rubber feet for high stability
  • Corrosion-resistant coating
  • Anchor device for 2 persons
  • Installation diameter: 643 mm–2190 mm, height: 1433 mm–2544 mm, transport length: 1562 mm, weight: 24 kg
  • Tested as an anchor device according to EN 795:2012 Type B, CEN/TS 16415:2017

Notes
Fall arrester not included in scope of delivery. Accessories, see art. no. 1093010 968-969. Other sizes and accessories available on request.

Brand: IKAR
EN standard: 795-B
Certified according: DIN CEN/TS 16415:2017
Max. load capacity: 300 kg
Min./max. height (with feet): 1433-2544 mm
Suitable for min./max. rope diameter: 4.8-11.0 mm
Max. number of people: 2
Transport length: 1562 mm
Material: Aluminium
Weight: 24 kg
Min./max. posting diameter: 643-2190 mm
Application area of fall protection: Sewer and manhole work | Mobile anchor point

Manufacturer part no.: 41-49

Product Datasheet
