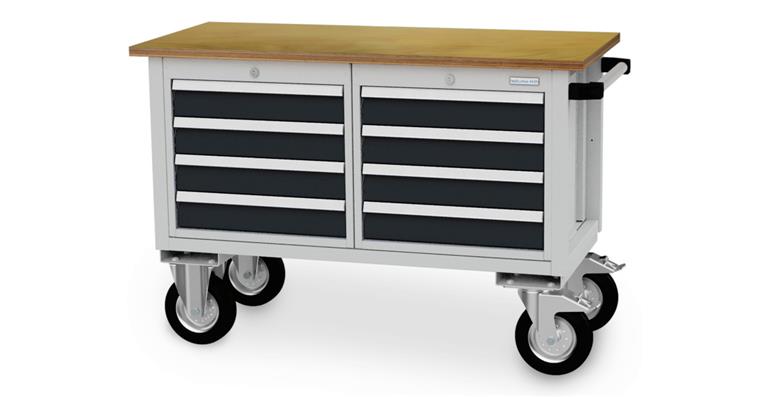

Mobile Werkbank B1200xT540xH820mm RAL7035/7016 8x Schublade

Mobile Werkbank B1200xT540xH820mm RAL7035/7016 8x Schublade

Mobile Werkbank B1200xT540xH820mm RAL7035/7016 8x Schublade
Item no: 1081754 103

Online price:

Availability on demand

Execution
  • Left: 1x centrally lockable drawer cabinet with 4x roller-mounted drawers
  • Right: 1x centrally lockable drawer cabinet with 4x roller-mounted drawers
  • Beech multiplex worktop 1,200 x 540 x 25 mm
  • Ground surface
  • Welded steel tube construction 30 x 30 x 2 mm
  • 2x swivel castors and 2x fixed castors
  • Both swivel castors with wheel blocks
  • Hubs with roller bearings
  • Solid rubber tyres dia. 200 mm

Notes
For fitting assortments, see art. no. 1081756 101-103.

Brand: BEDRUNKA HIRTH
Number of drawers: 8 PCS
Drawer width (inner dimension): 450 mm
Load-carrying capacity per drawer: 75 kg
Drawer front height: 8 x 100 mm
Pullout type: Full extension
Drawer depth (inner dimension): 400 mm
Working height: 820 mm
Plate length: 1200 mm
Plate depth: 540 mm
Material of worktop: Multiplex beech
Plate thickness: 25 mm
With single pull-out safety brake: No
With single-locking drawers: No
On castors: Yes
Moving device, can be lowered: No
With sliding handle: Yes
Load-carrying capacity: 500 kg
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Number of wheel adjusters: 2 PCS
Material of wheel: Solid rubber
Wheel diameter: 200 mm
Central locking: Yes
Lock type: Cylinder lock
Material: Sheet steel
Cabinet colour: Light grey RAL 7035
Colour of front: Anthracite grey RAL 7016
Surface: Powder-coated

Manufacturer part no.: 04.12.93 7035/7016

Product Datasheet
Additional articles

Please select a button.

Accessories
Versions
loading
Keywords:

[Text nicht gefunden]

  • Schaftfräser zyl. DIN 844 B Typ N lang 4 Schn. Z-Schnitt HSS-E/TiAlN 10,0 mm
  •
    Schaftfräser zyl. DIN 844 B Typ N lang 5 Schn. Z-Schnitt HSS-E/TiAlN 25,0 mm
  •
    ATORN CKUN boring bar, steel, negative, left, S 32 U CKUN R/L 16
  •
    Current voltage tester testo 755-1
  •
    Fibre disc (active grinding) synthetic corundum grain 50 dia. 115 mm
  •
    VT 2-pole voltage tester 12-690 V AC/DC
  •
    Two-pole voltage finder 120-750 volts
  •

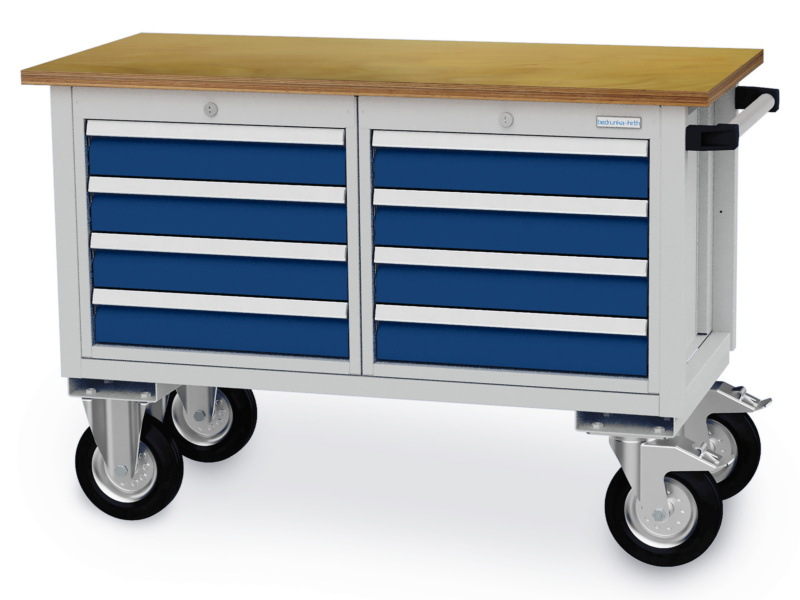

    Mobile Werkbank B1200xT540xH820mm RAL7035/5012 8x Schublade
  •

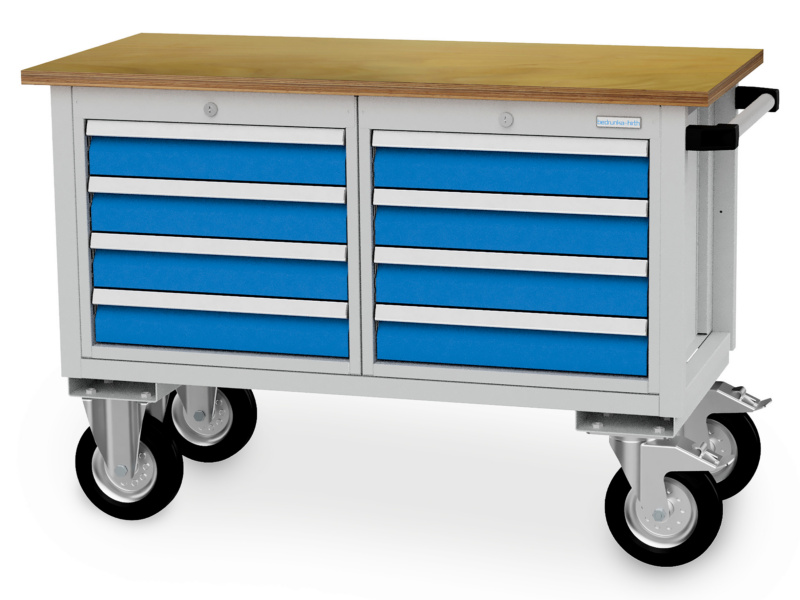

    Mobile Werkbank B1200xT540xH820mm RAL7035/5010 8x Schublade
  •
    Handle DN40
  •

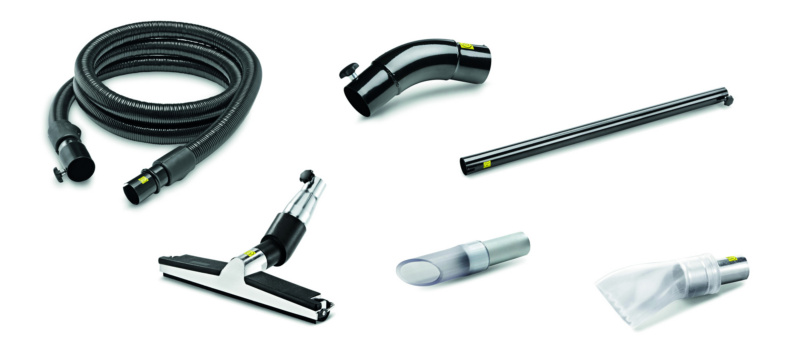

    Liquid and swarf kit DN50 3 m
  •
