VT 2-pole voltage tester 12-690 V AC/DC

VT 2-pole voltage tester 12-690 V AC/DC

VT 2-pole voltage tester 12-690 V AC/DC
Item no: 1062370 101

Online price:

Available in 6-8 working days.

Application
For testing voltage and continuity in line with regulations

Execution
  • One-handed operation
  • LED display for voltage and polarity
  • Probe tip protection
  • Voltage display 12-690 V AC/DC
    • Clear, staggered LED display

    • Works without batteries

    • Compact, handy voltage tester


Brand: WEIDMUELLER
Min./max. voltage range DC: 12-690 V/DC
Type: VT
Min./max. voltage range AC: 12-690 V/AC
Display: LED
High voltage resistance: 5 kV
Min./max. frequency: 0 / 65 Hz
Rotating field test: No
Phase sequence test: No
Polarity testing: Yes
Vibration control system: No
IP protection class: IP 64
Length x width x height: 190 x 55 x 21 mm
Weight: 115 g
Overvoltage protection category: CAT II/600 V
Min./max. working temperature: -15 to 55 °C
EN standard: 61010 | 61243-3
Height: 21 mm
Length: 190 mm
Max. frequency: 65 Hz
Min. frequency: 0 Hz
Width: 55 mm

Manufacturer part no.: 480079

EAN no.: 4032248405831

Product Datasheet
Keywords:

[Text nicht gefunden]

  • Schaftfräser zyl. DIN 844 B Typ N lang 4 Schn. Z-Schnitt HSS-E/TiAlN 11,0 mm
  •

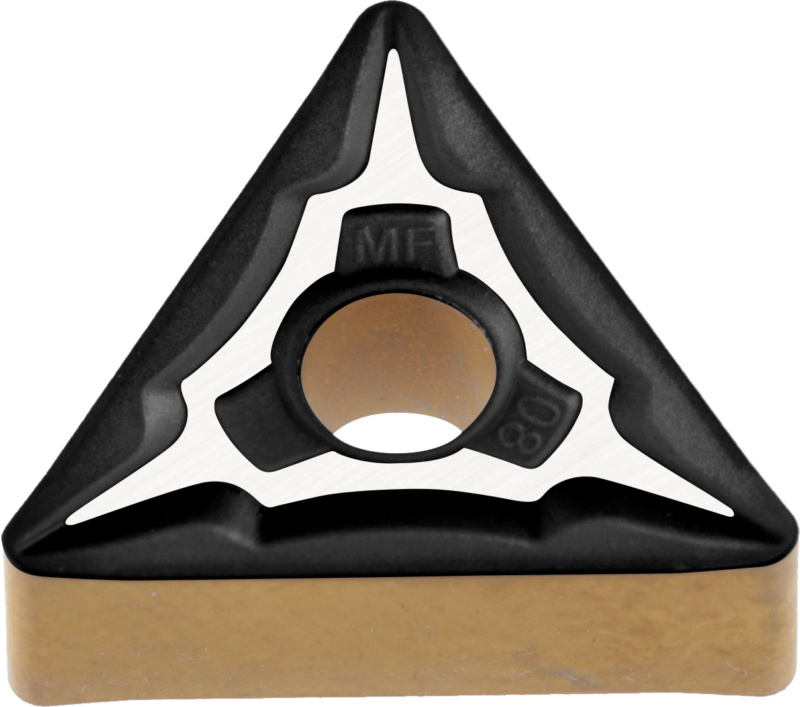

    ATORN indexable insert TNMG 160404-FP1 HC7605
    8,10 €
  • ATORN indexable insert TNMG 160408-FP1 HC7605
    8,10 €
  • Current voltage tester testo 755-1
    154,84 €
  • Current voltage tester testo 755-2
  •

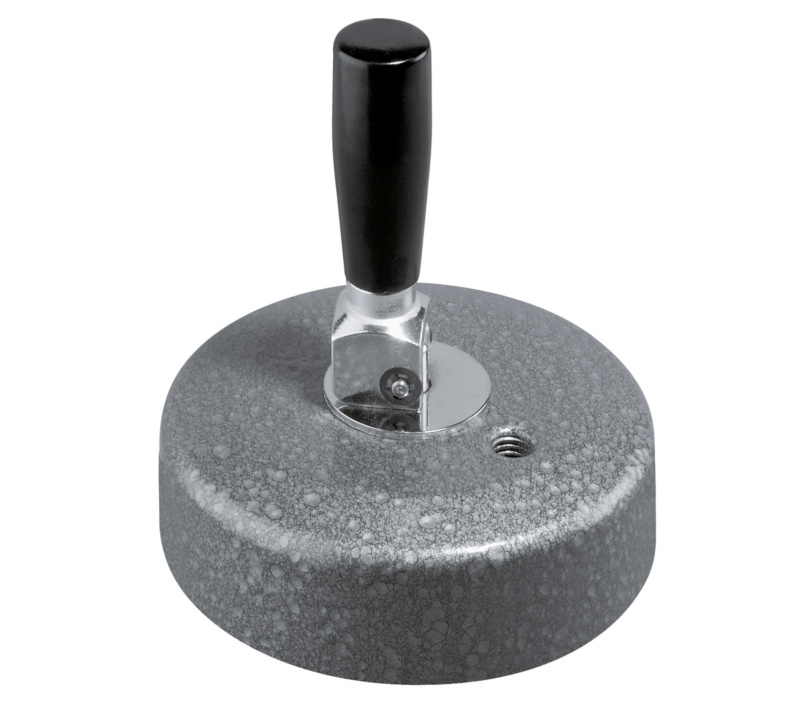

    Vacuum base f. stands, switch lever f. flat non-porous surface, mount M8 dia. 88
  •
