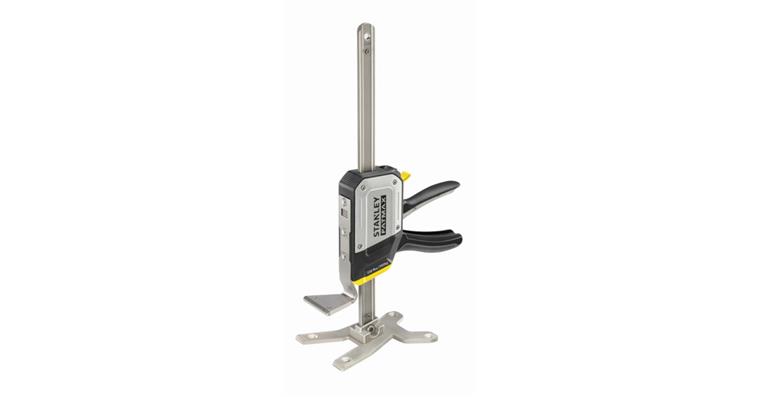

FATMAX® Einhand-Montagewerkzeug TradeLift™ einzeln

FATMAX® Einhand-Montagewerkzeug TradeLift™ einzeln

FATMAX® Einhand-Montagewerkzeug TradeLift™ einzeln
Video
Item no: 1053024 101

Online price:

Still in stock: 2

Application
Enables professionals to work alone.
Ideal for kitchen, floor, door and window installation, carpentry, joinery, dry walling and general building - lifting/lowering, clamping, aligning and holding.

Execution
  • Intuitive operation: easy lifting and controlled lowering in steps without accidental release
  • Fine adjustment: raises the lifting plate by up to 2.5 mm in steps for precise adjustment when levelling
  • Angled edge: makes it easy to slide the base under flat objects
  • Stable application: four countersunk screw holes for mounting ensure the tool is securely anchored
  • Large base plate: for additional stability and to help prevent tipping
  • Enclosed metal plate housing: provides added durability and prevents dust from contaminating the tool
  • Ergonomic handle: the coated handle offers grip, comfort and control

Advantage
  • High performance: up to 150 kg lifting force per device
  • Reduced effort: can be operated with the foot, allowing the user to apply pressure to the handle to make it easier to lift heavy objects, such as appliances, with the hands
  • Recessed release button: safety feature to prevent accidental activation of the release mechanism


Number of pieces per packing unit: 1
Min./max. lift height: 7-220 mm
Base plate length: 170 mm
Base plate width: 125 mm
Base plate height: 6 mm
Min./max. distance between baseplate fastenings: 90-140 mm
Length: 240 mm
Width: 125 mm
Height: 450 mm
Weight: 2,7 kg

Manufacturer part no.: FMHT83550-1

EAN no.: 3253561835506

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Welder's glove MAG 10-2101GB PU=1 pair size XL
    9,30 €
  • Cordless hot air blower MH 5 set 8.0 Ah
  •
    M18BHG-0 cordless hot air blower
  •
    Cordless hot air blower MH 3 set 8.0 Ah
  •
    Hinged door useful height 900 mm 1 door RAL 5010 for cabinet 705x736 mm
  •
    Through hole screw tap G DIN 5156 shape C 2.5xD HSS-E nit. grey cast iron 3/4 in
  •

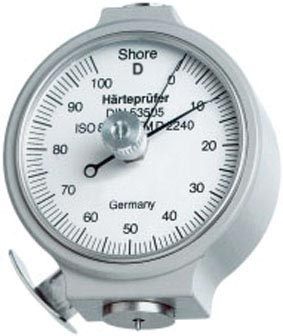

    SHORE D hardness tester anal. drag ind. DIN 53505 press. rllrs hrd plastics etc.
  •
