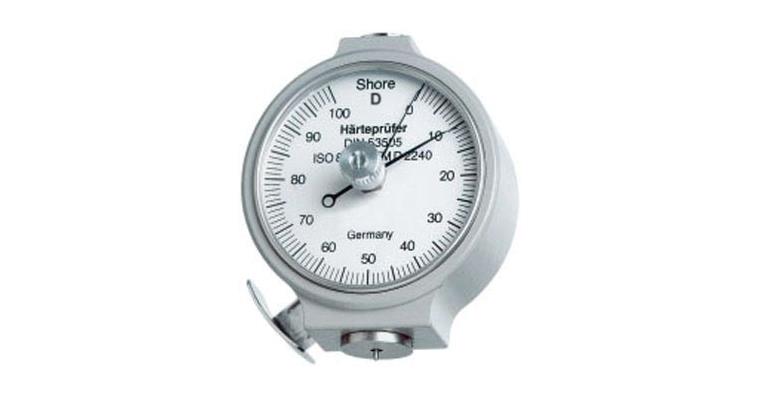

SHORE D hardness tester anal. drag ind. DIN 53505 press. rllrs hrd plastics etc.

Application
For determining SHORE D hardness in accordance with DIN 53505, DIN EN ISO 868, ASTMD 2240, DIN ISO 7619. Application areas: acrylic glass, cellulose acetate, pressure rollers, hard plastic materials, hard rubber, polystyrene, Resopal, rigid thermoplastics, vinyl sheets. The hardness value is displayed in SHORE units. Minimum thickness of the material to be tested 6 mm.

Execution

• Art. no. 1039170 103: Without trailing pointer
• Art. no. 1039170 104: With trailing pointer

Notes
Deliverable with DAkkS or factory calibration certificate on request. Digital SHORE hardness tester, test stand, load weight as well as reference elastomers and control rings deliverable on request.
