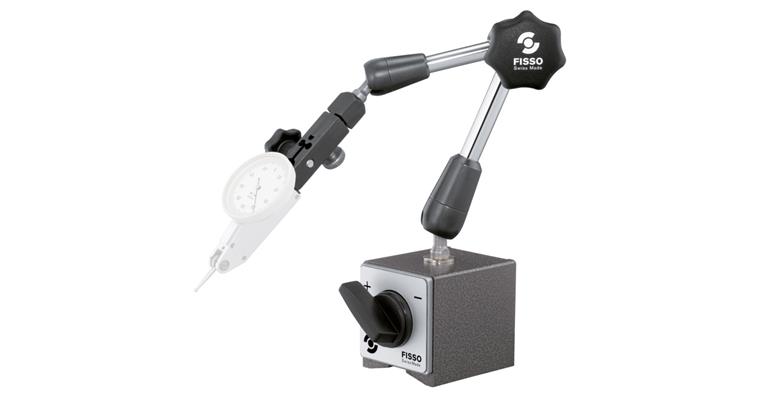

3D precision artic. meas. stand CLASSIC-LINE H=310 mm adh. force approx. 800 N

3D precision artic. meas. stand CLASSIC-LINE H=310 mm adh. force approx. 800 N

3D precision artic. meas. stand CLASSIC-LINE H=310 mm adh. force approx. 800 N
Item no: 1034022 090

Online price:

Still in stock: 5

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • Powerful switching magnet with prismatic base, can be switched on and off with turning handle
  • Precisely positioned in no time at all
  • Short clamping path for optimum operating comfort
  • Powerful and durable clamping
  • Friction clamping based on a continuously variable, purely mechanical clamping system
  • High stability of the articulated stand thanks to precise fit in the ball joint
  • Pre-tension prevents unwanted collapse in the loosened state to protect the measuring instruments
  • Maintenance-free and durable system
  • Precise micro-fine adjustment
  • Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability
    • Combined mount for dial gauges, electronic measuring probes with shank dia. 8 mm and level gauge probes with dovetail

    • Maximum precision ball joints made of steel

    • Chrome-plated arm parts made of high-quality light metal

    • Micro-fine adjustment made of steel

Advantage
  • FISSO articulated stands can be moved easily and precisely into any desired position
  • Central clamping handle for securing and releasing all 3 joints
  • Wartungsfreies und dauerhaftes System
  • Präzise Mikro-Feineinstellung

Delivery
In expandable polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Adherence strength: 800 N
Base size: 60 x 50 x 55 mm
Operation radius: 200 mm
Overall height: 310 mm
Material: Steel / plastic
Base height: 55 mm
Base width: 50 mm
Foot length: 60 mm

Manufacturer part no.: 2220.10

EAN no.: 7640152570193
