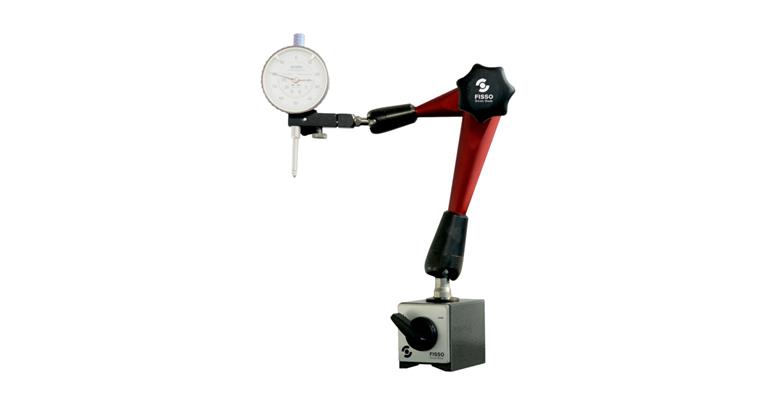

3D articulated measuring stand with sw. magnet approx. 800 N op. radius 280 mm

3D articulated measuring stand with sw. magnet approx. 800 N op. radius 280 mm

3D articulated measuring stand with sw. magnet approx. 800 N op. radius 280 mm
Item no: 1034020 110

Online price:

Available for immediate delivery

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • Pre-stress prevents unwanted collapse in the loosened state to protect the measuring instruments
  • Maintenance-free and durable system
  • With switching magnet
  • Short clamping path for optimum operating comfort
    Powerful and durable clamping
  • With continuously adjustable pre-tension
  • Precise micro-fine adjustment
    • Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability

    • Maximum precision ball joints made of steel

    • Red anodised arm parts made of high-quality light metal

    • Micro-fine adjustment made of steel

    • Precisely positioned in no time at all

    • Friction clamping based on a continuously variable, purely mechanical clamping system

    • Articulated stand fits precisely into the ball joint for a high level of stability
  • Kombinierte Aufnahme für Messuhren, elektronische Messtaster mit Schaft Ø 8 mm und Fühlhebeltaster mit Schwalbenschwanz
  • Kugelgelenke mit größter Präzision aus Stahl gefertigt
  • Rot eloxierte Armteile aus hochwertigem Leichtmetall

Advantage
  • FISSO articulated stands can be easily and precisely placed in any desired position
  • Zentralspanngriff zum Fixieren und Lösen aller 3 Gelenke
  • Wartungsfreies und dauerhaftes System
  • Präzise Mikro-Feineinstellung

Delivery
In polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Adherence strength: 800 N
Base size: 60 x 50 x 55 mm
Operation radius: 280 mm
Overall height: 390 mm
Material: Aluminium / plastic / steel
Base height: 55 mm
Base width: 50 mm
Foot length: 60 mm

Manufacturer part no.: M-28.10

EAN no.: 7640152570094

Product Datasheet
