Internal precision measuring instrument set steel measuring pin MR 18-100 mm

Internal precision measuring instrument set steel measuring pin MR 18-100 mm

Internal precision measuring instrument set steel measuring pin MR 18-100 mm
Item no: 1033830 108

Online price:

Available in 8-10 working days.

Application
For precise measuring of bores using the 2-point method. Turning and/or moving the device in the bore makes it possible to detect deviations in shape.

Execution
  • Movable carbide-tipped measuring pin
  • Art. no. 1033830: fixed measuring pin made of hardened steel
  • Art. no. 1033831: fixed carbide-tipped measuring pin

Advantage
  • High repeatability 0.5-1.5 µm
  • Self-centring in the bore
  • INVAR pipe (special nickel alloy) guarantees minimum thermal expansion caused by body heat from hands or high ambient temperatures

Delivery
1x bore gauge
1x wooden case
Calibration certificate
Without dial indicator

Notes
Varianten:
Typ SU - Standardausführung

Brand: SCHWENK
Calibration Group: T
Min./max. diameter of measuring range: 18-100 mm
Measuring depth: 116/179 mm
Number of measuring pins: 28 PCS
Nominal dimension of spindle: 18-34 mm, increasing every 2 mm | 35-59 mm, increasing every 5 mm | 50-100 mm, increasing every 5 mm
Number of measurement discs: 8 PCS
Measurement disc thickness: 1 mm | 2 mm | 3 mm | 6 mm
Material of measuring bolt: Steel
Number of pieces in assortment/set: 36 PCS
Type: SU

Manufacturer part no.: 11500000

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Internal precision measuring instrument set steel measuring pin MR 50-100 mm
  •
    ATORN bandsaw blade bi-metal UNI M42 2890 x 27 x 0.9 mm 3/4
  •
    ATORN double open-end wrench 12 x 13 mm DIN 3110
  •
    Internal precision measuring instrument set steel measuring pin MR 50-160 mm
  •
    Centring angle aluminium hardened scratch-resistant surface 150 x 130 mm
  •

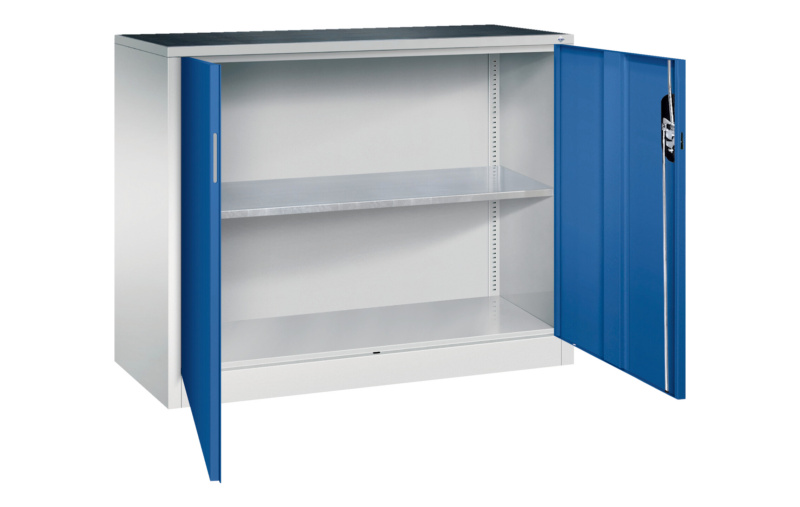

    Hinged door cabinet 1000x1200x500 mm 1 shelf RAL 7035/5010
  •
