Digital multimeter (True RMS) MM 12

Digital multimeter (True RMS) MM 12

Digital multimeter (True RMS) MM 12
Item no: 1062397 101

Online price:

Available in 6-8 working days.

Application
Suitable for industry, electrical engineering and service.

Execution
  • With logging function (40,000 measured values), Bluetooth® and USB interface
  • TRUE RMS measurement procedure
  • Memory function (1,000 measured values, A-SAVE, SAVE)
  • PC software for further evaluation
  • Free iOS/Android app for transferring data to a smartphone/tablet
  • AutoV function for automatic AC/DC voltage detection and low input impedance (LoZ)
  • Low-pass filter (HFR) for measurements on motor drives
  • Additional functions: HOLD, P-HOLD, REL, MAX/MIN/AVG, dB/dBm
  • Measurement category CAT III 1,000 V, CAT IV 600 V

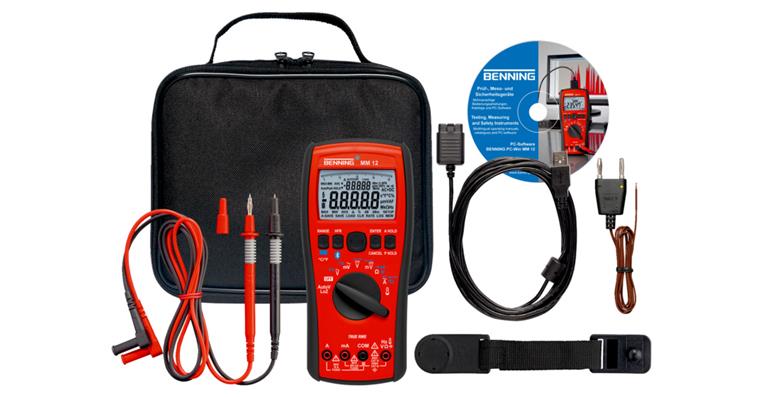

Delivery
PC software
USB cable
Protective rubber frame
Magnetic hook
Bag
Four batteries (1.5 V AA LR6)
Measuring leads
Wire temperature sensor
Calibration certificate

Notes
For replacement batteries, see art. no. 1039900 303.

Brand: BENNING
Measuring accuracy: +/- 0.5 %
Min./max. test voltage (DC): 10 µV-1000 V
Min./max. test voltage (AC): 10 µV-1000 V
Min./max. alternating current of measuring range: 10 µA-10 A
Min./max. direct current of measuring range: 10 µA-10 A
Continuity testing: Yes
Diode testing: Yes
Min./max. electrical-resistance measuring range: 0.1 Ohm-40 MOhm
Min./max. frequency: 0.0001 / 100 kHz
Min./max. temperature measuring range: -200 to 1200 °C
Measuring procedure: TRUE RMS AC | AC+DC
Overvoltage protection category: CAT IV/600 V | CAT III/1000 V
Display: LCD
Max. direct current of measuring range: 10 A
Max. frequency: 100 kHz
Min. direct current of measuring range: 10 µA
Min. frequency: 0,1 Hz
Battery designation: 1.5 V LR6 AA
Max. alternating current of measuring range: 10 A
Max. capacitor capacity: 40 mF
Max. test voltage (AC): 1000 V
Max. test voltage (DC): 1000 V
Min. alternating current of measuring range: 10 µA
Min. capacitor capacity: 0,01 nF
Min. test voltage (AC): 10 µV
Min. test voltage (DC): 10 µV
Number of rechargeable batteries/batteries: 4

Manufacturer part no.: 044088

EAN no.: 4014651440883

Product Datasheet
