Micrometer with disc measuring surfaces 25-50 mm measuring surfaces dia. 20 mm

Micrometer with disc measuring surfaces 25-50 mm measuring surfaces dia. 20 mm

Micrometer with disc measuring surfaces 25-50 mm measuring surfaces dia. 20 mm
Item no: 1031620 302

Online price:

Available in 8-10 working days.

Application
Tooth width measurements on module 0.8 and above, and measuring recess distances and centring edges.

Execution
  • Two plane-parallel lapped gauge discs, continuous plane without recesses
  • Scale sleeve and thimble brushed chromium-plated
  • Friction coupling
  • Spindle clamp with clamping ring

Delivery
1x case
1x adjustment wrench

Notes
For setting gauges, see art. no. 1031579.

Brand: HHW
Min./max. length measuring range: 25-50 mm
Vernier scale: 0.01 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 20 mm
Error limit: 0,004 mm
DIN: 863
Spindle clamping: Yes
Number of setting dimensions: 0 PCS
Calibration Group: D

Versions
loading
Keywords: Bügelmessschraube,Meßschraube,Mikrometer,Mikrometerschraube,tiefer Bügel Bügelmessschraube,Mikrometerschraube ,Digital-Messschieber,Digitaler Messschieber,Digitalmessschieber,Taschen-Messschieber,Taschen-Schieblehre,Taschen-Schublehre,Taschenmessschieber,Taschenschieblehre,Taschenschublehre-Taschenmessschieber,Schieblehre,Messschieber,Höhenmeßgeräte,Hoehenmessgeraete,Innen Messschrauben IMICRO,Kugelmessansatz Bügelmessschraube,Mikrometerschraube Bügelmessschraube,Zahnweitenmessung Bügelmessschraube,Bügelmessschrauben,BMS,Bügel-Messschrauben,Micrometer,Messschrauben,Bügel-,Digital-Bügelmessschrauben,digital,Präzisions-Bügelmessschrauben,Präzision,Ratschentrommel Bügelmessschraube,Ziffernanzeige Bügelmessschraube,Ziffernblatt Bügelmessschraube,Bügel-Messschraube,Bügelmessschraube-Bügelmessschrauben,Bügel-Messschraube, Bügelmessschraube-Bügelmessschrauben,

You might also be interested in this

  • SC indexable insert DCGT 11T308EL-SI:T8430
  •
    SC indexable insert DCGT 11T304EL-SI:T8430
  •
    Micrometer with disc measuring surfaces 50-75 mm measuring surfaces dia. 20 mm
    271,00 €
  • Inspection rule DIN866/A lasered 1/1 mm graduation normal steel L=3000 mm
  •
    Twist drill bit HSS-PM SG-coated 135° tip angle 3xD dia. 4.08 mm
    31,75 €
  • SC indexable insert DCGT 11T304ER-SI:T8430
    14,88 €
  • SC indexable insert CCGT 09T304EL-SI:T8315
  •
    SC indexable insert CCGT 09T304ER-SI:T8430
  •
    Straight box-end wrench set DIN 837 CV steel 12 pcs AF 6x7-27x32 mm
    253,80 €
  • ATORN indexable milling insert XDMW 090316SR HC4415
  •
    SC indexable insert CCGT 09T304ER-SI:T8315
  •

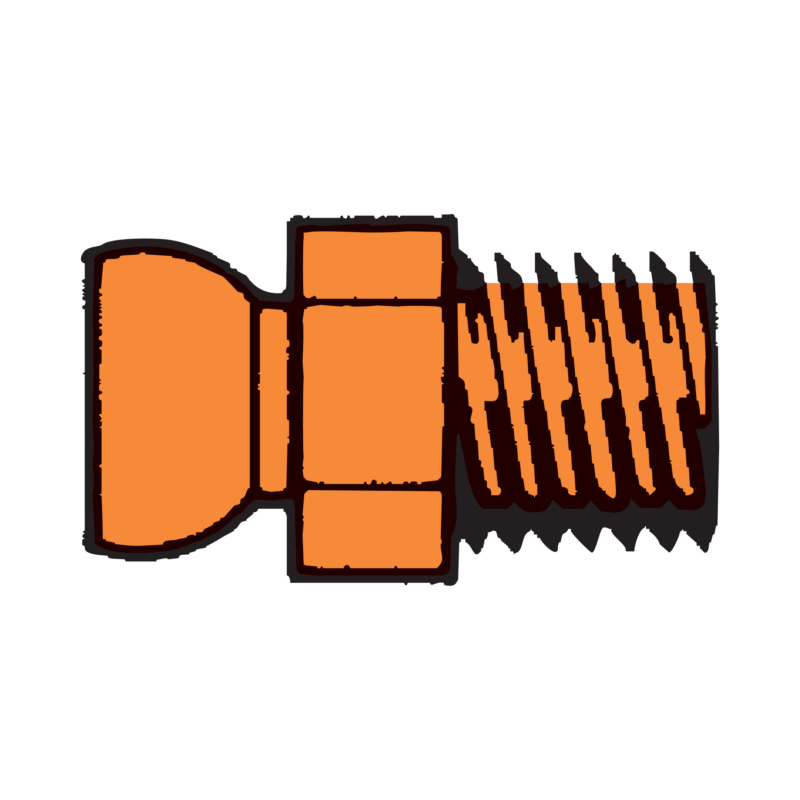

    1/4 inch threaded connector NPT R1/4 inch pack = 4 pcs. flex. pla. coolant hoses
