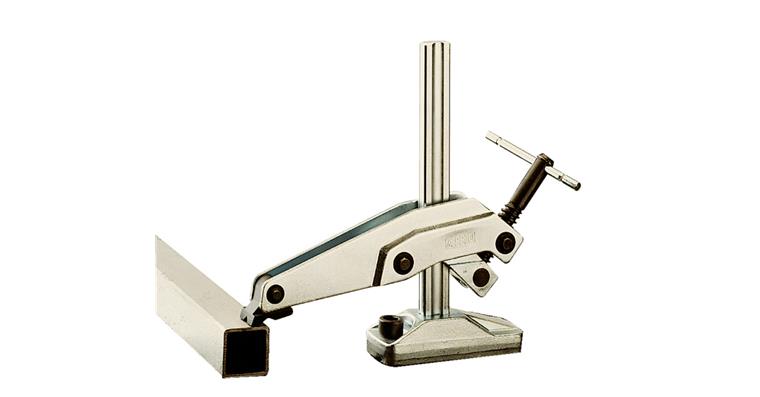

Pull clamps robust overhang x clamping height 123-140 x 200 mm

Pull clamps robust overhang x clamping height 123-140 x 200 mm

Pull clamps robust overhang x clamping height 123-140 x 200 mm
Item no: 1027365 101

Online price:

Available in 8-10 working days.

Application
For quick and secure clamping on machine tables and appliances. For drilling and light milling work.

Execution
  • Clamping force up to 7,500 N
  • Swivels and is infinitely height-adjustable
  • External spindle for unhindered access to the working area and clamping in tight conditions
  • Secure clamping of round parts via cross-shaped prisms
  • Heat-treated and zinc-plated


Brand: BESSEY
Clamping height: 200 mm
Min./max. throat depth: 123-140 mm
Rail cross-section L x W: 28 x 11 mm
Hole diameter for fastening screw (Bohrungs-Ø für Befestigungsschraube): 16,5 mm
Clamping force at 50-mm clamping height: 7500 N
Weight: 2,81 kg

Manufacturer part no.: GRS 20-12

EAN no.: 4008158035840

Product Datasheet
Keywords:

You might also be interested in this

  • HeliCoil plus repair packs 30 stainless steel inserts M10 x 15
  •
    ATORN surface chuck (Weldon) HSK63 (ISO 12164) dia. 6 mm A=65 mm
    96,12 €
  • ATORN SC TiAlSiN HPC hard drill 3xD Ø 10.5 mm x 12 mm x 102 mm HA external
  •
    Chemical protective glove Lapren® 706 length 310 mm pack = 10 pairs size 9
    35,50 €
  • ATORN SC TiAlSiN HPC hard drill 3xD Ø 13.5 mm x 14 mm x 107 mm HA external
  •
    ATORN wire end brush, 16 x 45 x 25 mm, shank 6 mm, stranded wire, 0.20 mm
  •
    ATORN SC TiAlSiN HPC hard drill 3xD Ø 11.6 mm x 12 mm x 102 mm HA external
  •

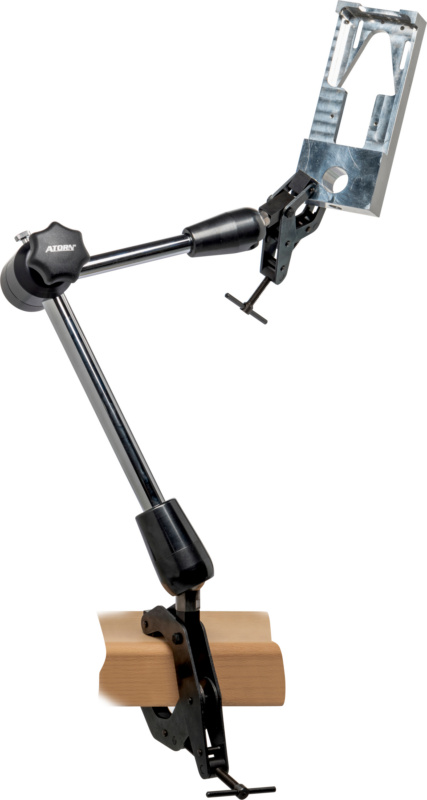

    ATORN 3D assembly holder, operating radius 620 mm, clamp holders 75/100 mm
  •
