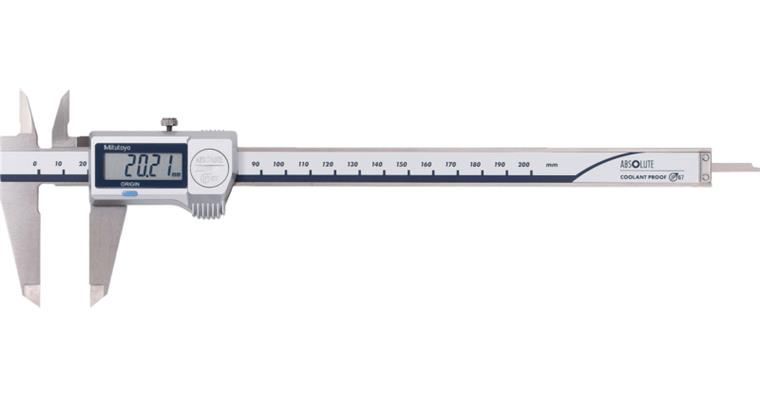

IP67 digital pocket vernier callipers 0-200 mm with data output

IP67 digital pocket vernier callipers 0-200 mm with data output

1031015405 IP67 digital pocket vernier callipers 0-200 mm with data output
Item no: 1031015 405

Online price:

Still in stock: 6

Application
For measuring external, internal, step and depth dimensions.

Execution
  • ABSOLUTE system for reliable measurement
  • High-contrast digital display
  • Locking screw at the top
  • Functions: ORIGIN (ABS zero point), auto switch-off, low voltage alarm

Advantage
  • Very high resistance to water and dust (degree of protection IP67). Suitable for use in machining situations that involve coolants and lubricants
  • Dustproof in accordance with DIN EN 60529. Can survive temporary, complete immersion in water without damage
  • No re-calibration of reference point needed after powering on (ABS scale)

Delivery
1x box
1x battery

Notes
For test gauge, see art. no. 1032060 201.
For connection cables, see art. no. 1035200 601, 602, 608.
For replacement batteries, see art. no. 1039900 101.

Brand: MITUTOYO
Min./max. length measuring range: 0-200 mm
Digit increment: 0,01 mm
Depth gauge rod: Flat
Length of jaw: 50 mm
Data transmission type: Cable | Bluetooth | Wireless
Error limit: 0,02 mm
IP protection class: IP 67
Interface: Bluetooth | Integrated Wireless | Digimatic | USB 2.0 type A
Other standard: Company standard
Calibration Group: A
Length of cross tips: 24,5 mm
Digit height: 9 mm
Type of locating: With locking screw

Manufacturer part no.: 500-717-20
