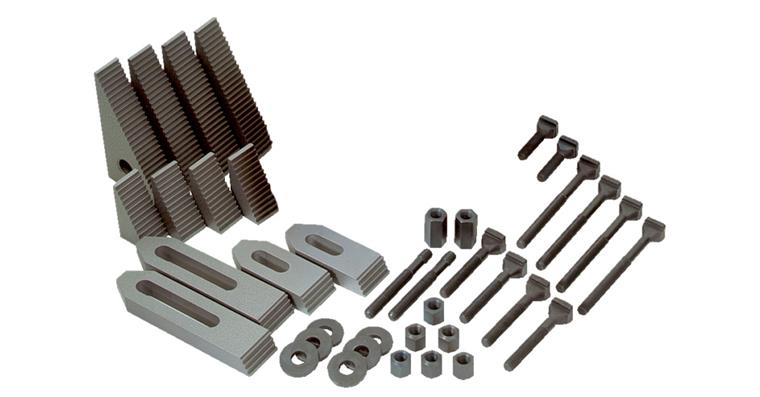

Clamping screw basic assortment 46 pieces groove nominal size 18 M16

Clamping screw basic assortment 46 pieces groove nominal size 18 M16

Clamping screw basic assortment 46 pieces groove nominal size 18 M16
Item no: 1027023 103

Online price:

Available in 6-8 working days.

Application
Ideal for toolmaking, manufacturing and training facilities.

Execution
  • All parts are made from heat-treated steel to DIN or factory standards
  • Screw parts are heat treated to strength class 8 or 10
  • Rolled thread


Brand: AMF
Suitable for groove width: 18 mm
Thread dimension: M16
Composition of set: Clamp: 2 pieces x 125 | 2 pieces x 200 mm
Clamp supports: 4 pieces x size 2 | 4 pieces x size 3
T-groove screws DIN 787: 2 pieces x 63 | 4 pieces x 100 | 4 pieces x 160 mm
Stud screws DIN 6379: 2 pieces x 200 | 4 pieces x 160 mm
High nuts DIN 6330 B: 6 pieces
Extension nuts: 4 pieces
Washers DIN 6340: 6 pieces
Tension force: 40 kN
Clamping height for 2 clamping points: 205 mm
Clamping height for 4 clamping points: 130 mm
Weight: 15,2 kg

Manufacturer part no.: 83907

EAN no.: 4020772083908
