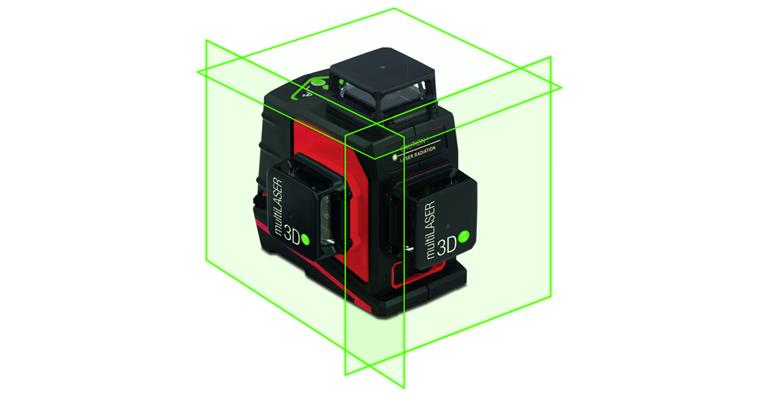

Linienlaser multiLASER 3D-Set grün 360° selbstnivellierend mit Empfänger

Linienlaser multiLASER 3D-Set grün 360° selbstnivellierend mit Empfänger

Linienlaser multiLASER 3D-Set grün 360° selbstnivellierend mit Empfänger
Item no: 1038100 210

Online price:

Available in 6-8 working days.

Application
For simultaneous alignment and levelling in interior applications.

Execution
  • Automatic levelling - magnetically damped pendulum saves adjustment time and guarantees precision
  • Automatic "out of levelling range" detection - a flashing laser beam indicates when the device is outside of the self-levelling range
  • Diagonals - by switching off the automatic levelling, the device can also create diagonal lines
  • Rotatable tripod mount (5/8 in) with fine adjustment allows simple/easy alignment of the vertical laser lines using an adjustment screw
  • Laser type: Green diode laser, wavelength 520 nm

Delivery
1x cross-line laser
1x receiver
1x levelling plate
Tripod adapter
Wall clamp
Homing board
Charger
Rechargeable battery
Case

Notes
For suitable tripod, see art. no. 1038100 310.

Brand: BMI
Levelling measuring accuracy (+/- per length): 3 mm/10m
Type: multiLaser 3DG Set
Self-levelling range (+/-): 2,5 Degree
Coverage distance: 50 m
Laser category: 2
IP protection class: IP 44
Length: 130 mm
Width: 80 mm
Height: 125 mm
Working range: 50 m
Min./max. operating temperature: -10 to 40 °C
With tripod socket: Yes
Battery included in delivery: Yes
Max. operating temperature: 40 °C
Min. operating temperature: -10 °C

Manufacturer part no.: 654-3DG-SET

EAN no.: 4007368117865
