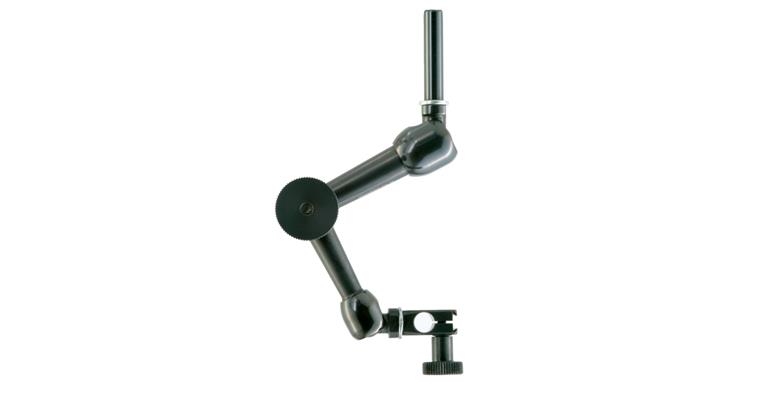

Articulated measuring stand for shank dia. 8 mm L=40 mm

Articulated measuring stand for shank dia. 8 mm L=40 mm

Articulated measuring stand for shank dia. 8 mm L=40 mm
Item no: 1021780 201

Online price:

Available for immediate delivery

Application
For lever gauge measuring instruments.
Used for: Workpiece positioning, centring bores/pins, aligning workpieces, hard-to-reach places.

Execution
  • Mechanical central clamping of all joints
  • Infinitely adjustable clamping force
  • Any position within the action radii can be achieved
  • Dial gauge mount with 8 mm shank diameter, length = 40 mm for direct mounting in the machine (collet chuck!)

Notes
For lever gauge measuring instruments, see art. no. 1033245 et seq.

Brand: LIZZARD
Operation radius: 150 mm
Measuring arm length: 40 mm

EAN no.: 4024496064311
