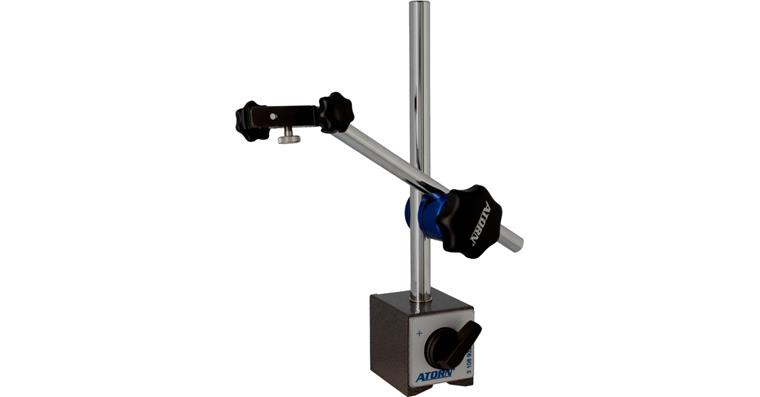

ATORN magnetic measuring stand with rigid column and fine adjustment

ATORN magnetic measuring stand with rigid column and fine adjustment

ATORN magnetic measuring stand with rigid column and fine adjustment
Item no: 1034012 201

Online price:

Available in 6-8 working days.

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • Cross joint can be rotated and swivelled through 360°
  • Central clamping mechanism with high clamping force
  • Holder for 8 mm shaft diameter and dovetail mount
  • Switching magnet with prismatic base
  • Micro-fine adjustment


Brand: ATORN
Height: 453 mm
Overhang: 164 mm
Measuring arm diameter: 12 mm
Measuring arm length: 164 mm
Base size: 60 x 50 x 55 mm
Base height: 55 mm
Fine adjustment: Yes
Adherence strength: 750 N
Design: Magnetic

ATORN-No.: 31089321

EAN no.: 4066107030605

Product Datasheet
