Shrink-fit chuck slim DIN 69893 shape E HSK40 extra-long dia. 12x144mm st. steel

Shrink-fit chuck slim DIN 69893 shape E HSK40 extra-long dia. 12x144mm st. steel

Shrink-fit chuck slim DIN 69893 shape E HSK40 extra-long dia. 12x144mm st. steel
Item no: 1021599 223

Online price:

Available in 6-8 working days.

Application
For clamping carbide, HSS and steel shanks with a tolerance of h6.

Execution
  • Slim
  • Stainless steel-coated
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Notes
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: HSK E40
Clamping diameter (d): 12,0 mm
Projecting length (A): 144,0 mm
Outer diameter (d3): 30,0 mm
Tapered diameter (d2): 18,0 mm
Clamp in depth (l2): 47,0 mm
Max. adjustment travel (max. V): 5,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 40,000 rpm
Construction length: Extra long
Max. concentricity: 0,003 mm
Thread dimension: M10 x 1

Manufacturer part no.: 72.568.501.460

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit HSS-E-Co8 AG-coated DIN 339 118° tip angle 10xD dia. 3.0 mm
  •
    Twist drill bit HSS-E-Co8 AG-coated DIN 339 118° tip angle 10xD dia. 4.5 mm
  •
    Twist drill bit HSS-E-Co8 AG-coated DIN 339 118° tip angle 10xD dia. 10.5 mm
  •
    Through hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF3x0.35
  •
    Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF12x1.50
  •
    ATORN SC mini torus mill cttr TiAlSiN 1x1x60 mm clearance 0.95x25 mm R 0.2 mm
  •
    ATORN SC mini torus mill cttr TiAlSiN 3x3x50 mm clearance 2.92x15 mm R 0.3 mm
    58,08 €
  • ATORN SC mini torus mill cttr TiAlSiN 3x3x65 mm clearance 2.92x30 mm R 0.5 mm
  •
    Metal circular saw blade DIN 1837 A fine tooth 128 teeth HSS 63 x 0.3 mm
  •
    1/4 in bit ratchet driver DIN 3126-C6.3 ISO 1173 clock/anticlock. rot. w. mag.
  •
    Querstrebe Quattro 1230x70x45mm für Plattenbreite 1500mm Anthrazitgrau RAL 7016
  •

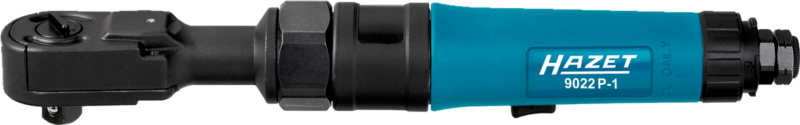

    Pneumatic ratchet wrench 1/2 inch 9022P-1 max. torque 95 Nm length 330 mm
