Shrink-fit chuck DIN 69893 shape A HSK63 diameter 4 x 90 mm

Shrink-fit chuck DIN 69893 shape A HSK63 diameter 4 x 90 mm

Shrink-fit chuck DIN 69893 shape A HSK63 diameter 4 x 90 mm
Item no: 1021597 102

Online price:

Available in 6-8 working days.

Application
For clamping carbide, HSS and steel shanks with a tolerance of h6.

Execution
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Notes
Coolant tube, see art. no. 1021864.
Key for coolant tube, see art. no. 1021865.
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: HSK 63
Clamping diameter (d): 4,0 mm
Projecting length (A): 90,0 mm
Outer diameter (d3): 20,0 mm
Tapered diameter (d2): 15,0 mm
Clamp in depth (l2): 20,0 mm
Max. adjustment travel (max. V): 5,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
Construction length: Short
Max. concentricity: 0,003 mm
Surface: Chrome / A2 appearance
Thread dimension: M6

Manufacturer part no.: 72.575.500.040

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN angular milling cutter, 90 degrees for AP 1604, 80.0 mm T=5
  •
    Spind Classic PLUS, Bank, 4 Abteile, 2120x1200x815mm RAL 7035/5012
  •
    Spind Classic PLUS, 4 Abteile, 1850x1200x500mm RAL 7035/5012
    584,20 €
  • Spind Classic PLUS, 3 Abteile, 1850x1200x500mm RAL 7035/5012
  •

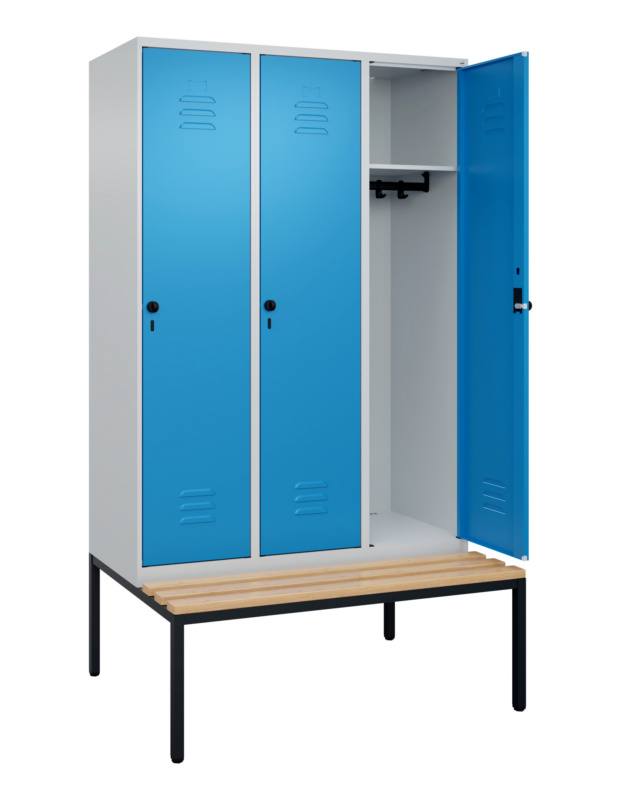

    Spind Classic PLUS, Bank, 3 Abteile, 2120x1200x815mm RAL 7035/5012
  •
    ATORN angular milling cutter, 90 degrees for AP 1604, 63.0 mm T=4
  •
    Hand tap DIN 5157 F third tap HSS G 1/4
    14,02 €
  • ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 16 mm A=160 mm
  •
    Spind Classic PLUS, Bank, 4 Abteile, 2120x1200x815mm RAL 7035/7016
  •

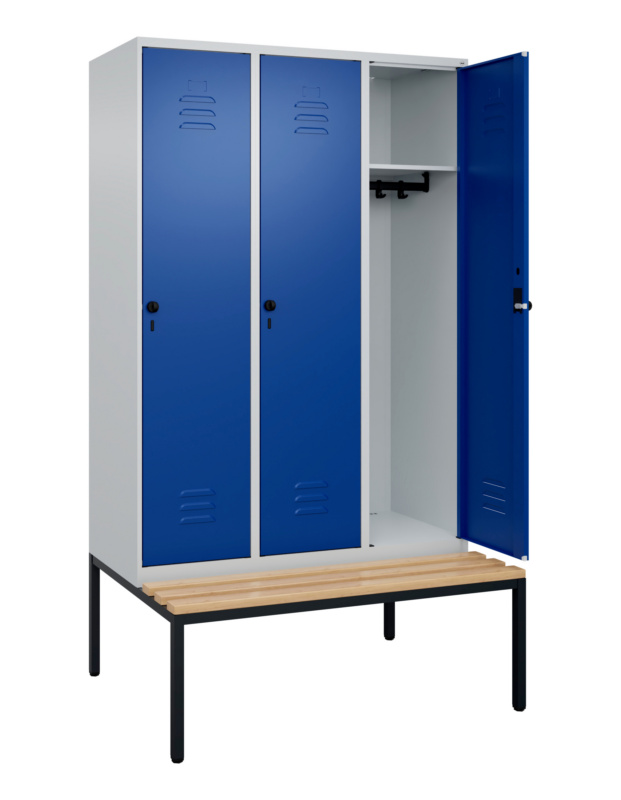

    Spind Classic PLUS, Bank, 3 Abteile, 2120x1200x815mm RAL 7035/7016
  •
