Hand tap DIN 5157 F third tap HSS G 1/4

Hand tap DIN 5157 F third tap HSS G 1/4

Hand tap DIN 5157 F third tap HSS G 1/4
Item no: 1014069 202

Online price:

Available for immediate delivery

Application
For the production of cylindrical Whitworth pipe threads DIN ISO 228 (formerly DIN 259). For unalloyed and low-alloy steels up to 900 N/mm² strength.

Execution
  • Third tap with chamfer shape C without ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter in inches: G 1/4 in
Core hole diameter: 11,80 mm
Length: 70 mm
Shank diameter: 11 mm
Shank square: 9 mm
Colour ring system: Steels
Design: Third tap
Shank style: Cylindrical with square drive
Thread type: Pipe thread
Lead angle shape: C
DIN: 5157
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance hole ≤ 3xD
Surface: Plain
Tolerance of screw taps: 6H
Nominal diameter in inches: 1/4 in
Number of thread starts per inch: 19
Twist angle: 0°

EAN no.: 4024496019694

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 1.2 mm
  •
    ATORN twist drill bit VA HSSE TiAlNplus DIN 338 diameter 7.8 mm
  •
    Multiplex HPC indexable insert SC/nanofire girder size 220 dia. 22.0 mm
  •
    Multiplex HPC indexable insert SC/nanofire girder size 310 dia. 31.0 mm
  •
    Hand tap DIN 352 no. 2 second tap HSS M4
  •
    Hand tap DIN 352 F third tap HSS-E M16
  •
    Fibre disc ceramic abrasive grain/Ceramics Plus, grit 24 dia. 180 mm
  •
    Schwerer gebogener 6kant Steckschlüssel ISO 2236 mit Bohrung SW 9 mm
  •
    Hexagon pin wrench set 9 pieces size 1.5-10 mm in plastic clip
  •
    Tool holder assortment ABAX® 15 pcs aluminium-coloured
  •
    Tool holder square for slotted plates L x dia. 300x15 mm load capacity 17 kg
  •

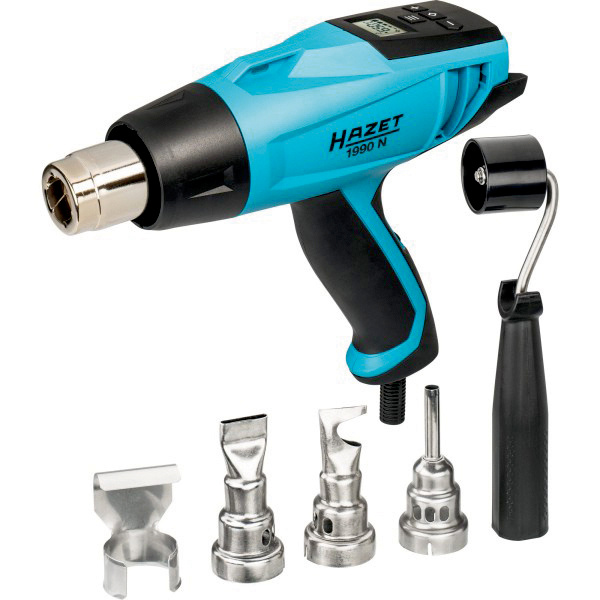

    Hot air blower 1990N/6
